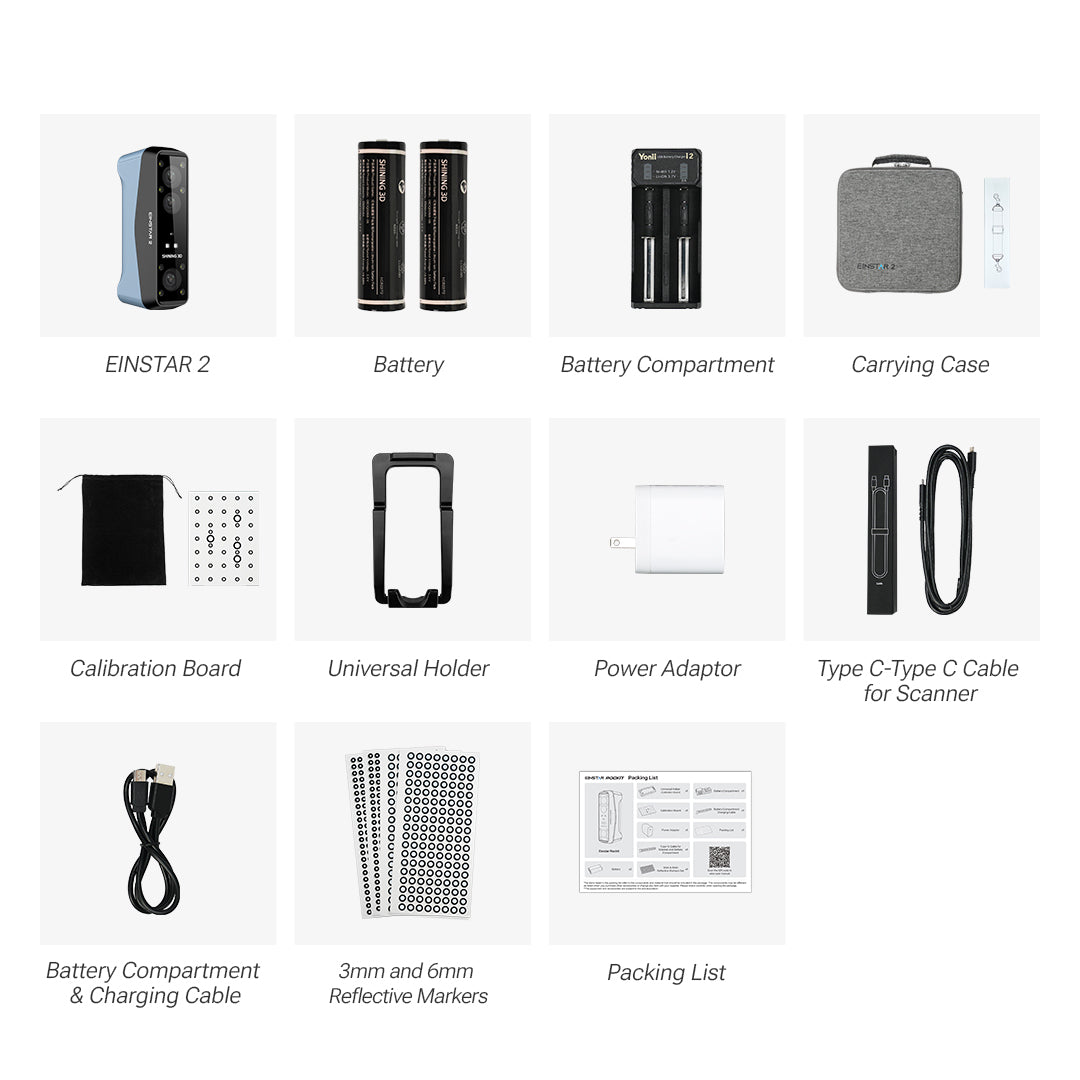

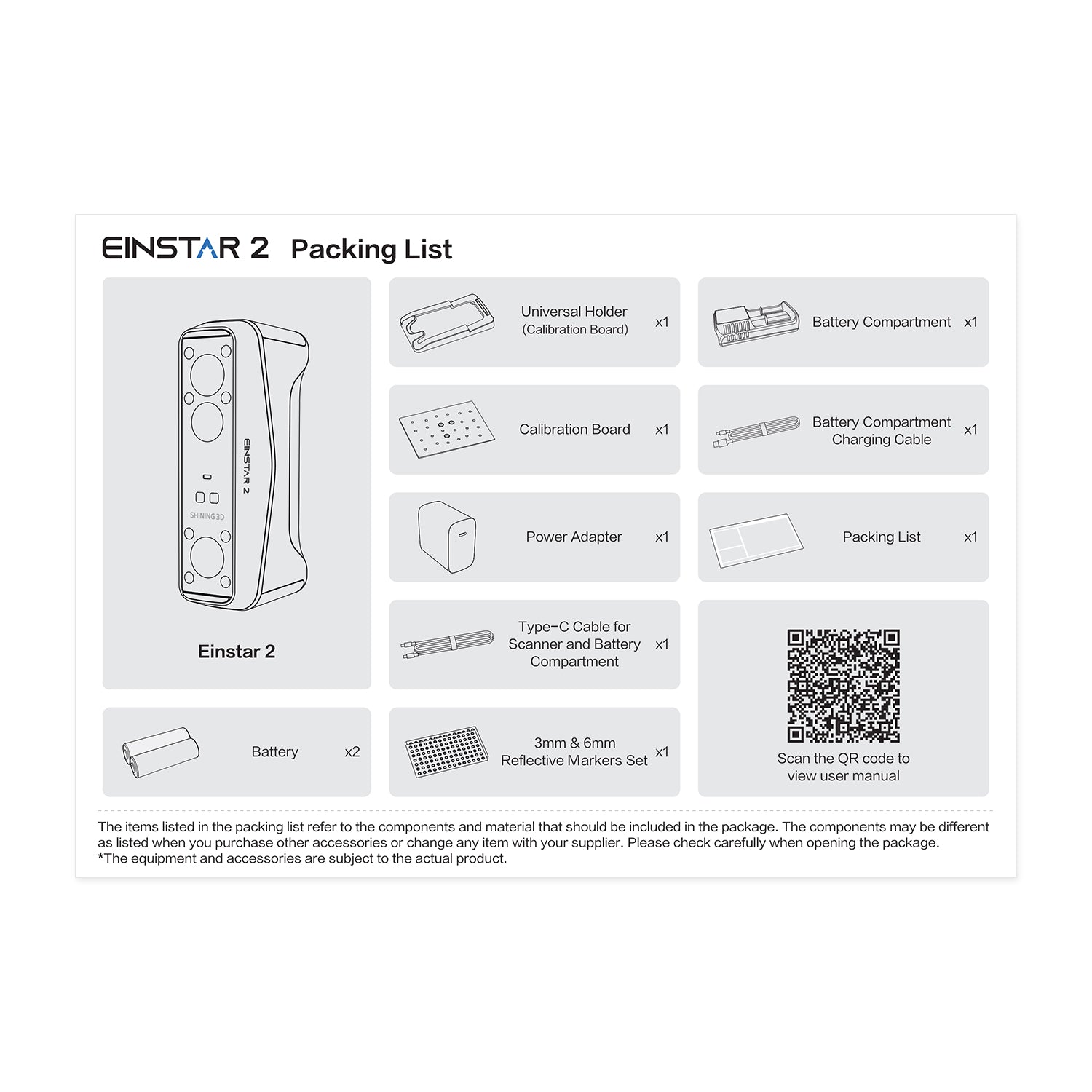

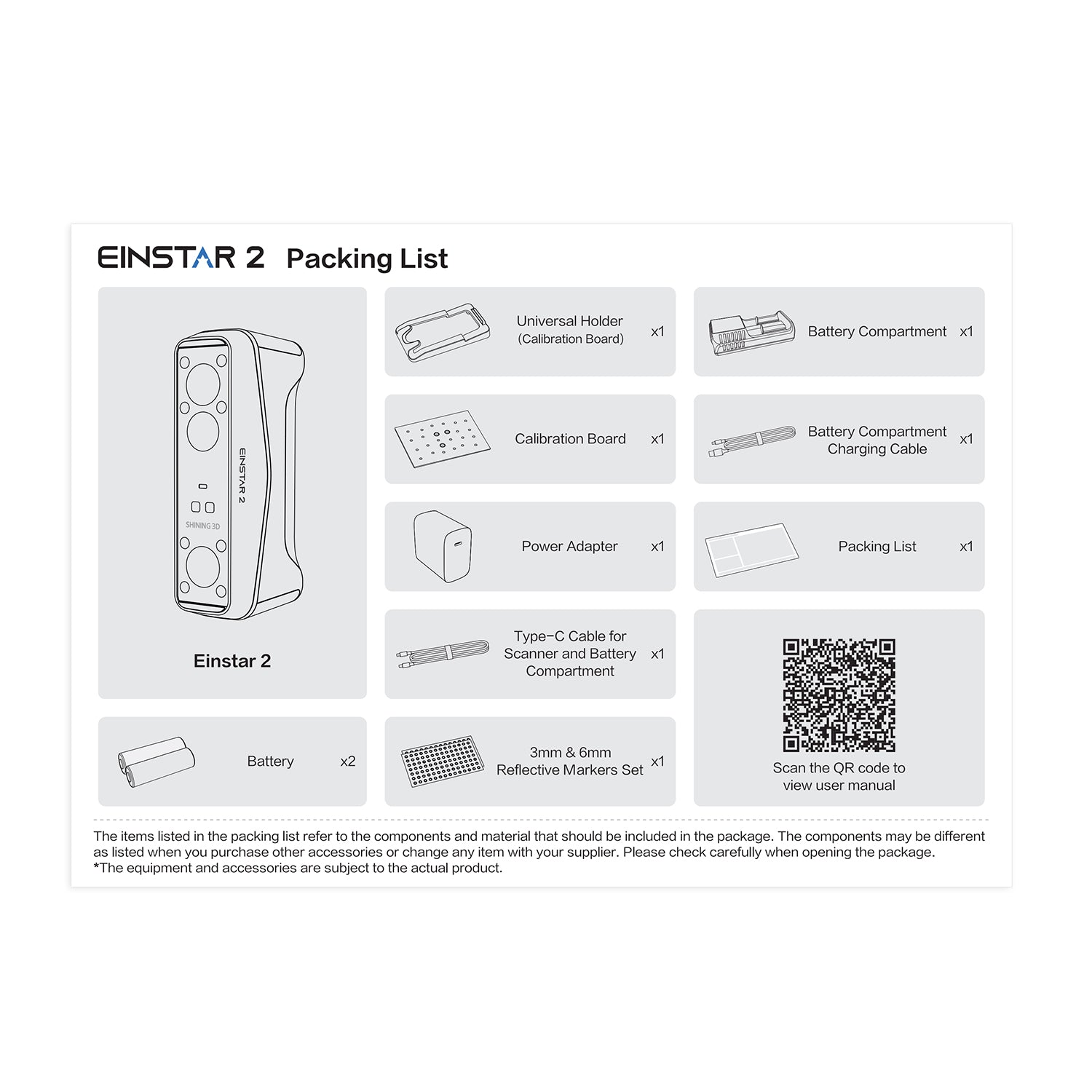

- What's In The Box
- FAQs
- Download
- Reviews

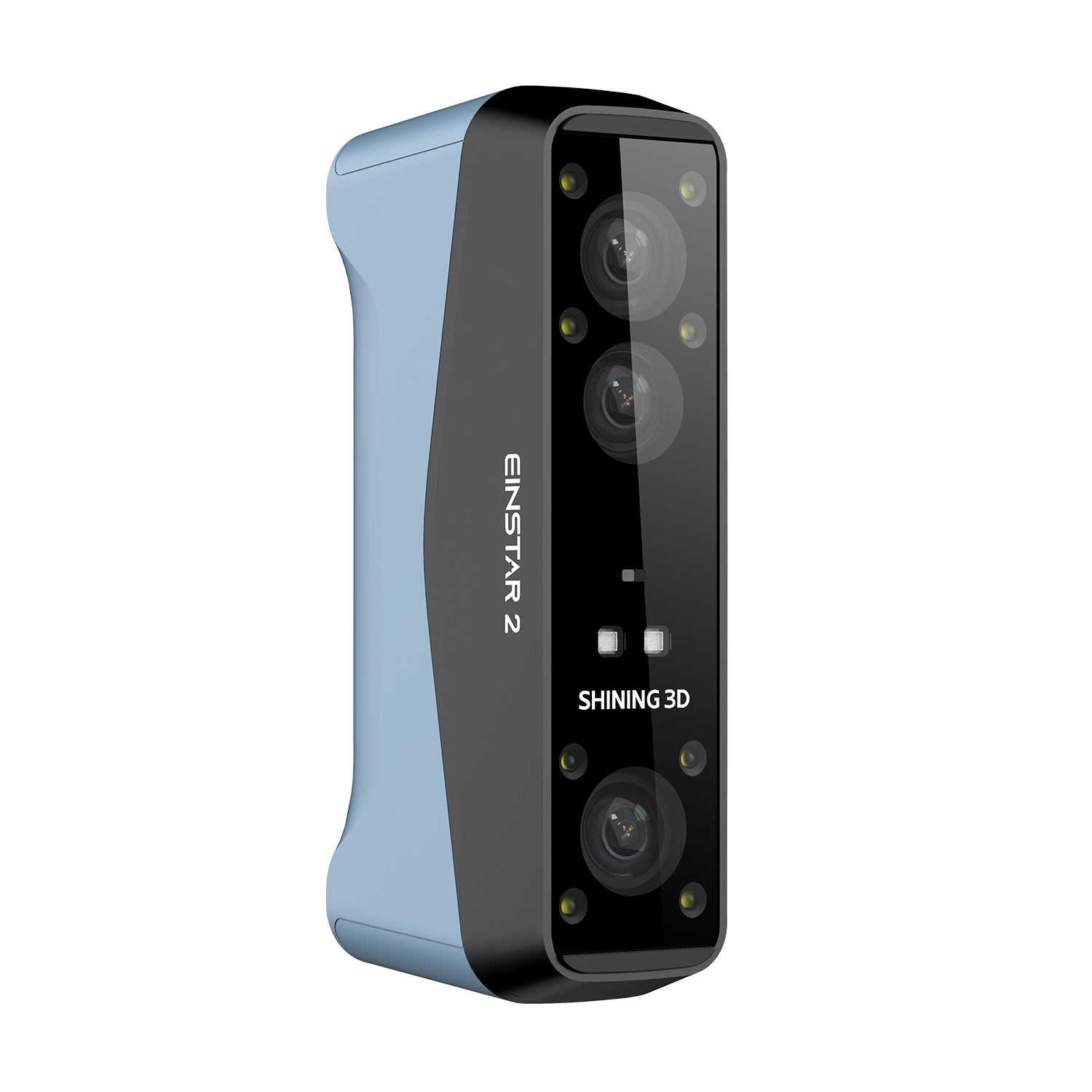

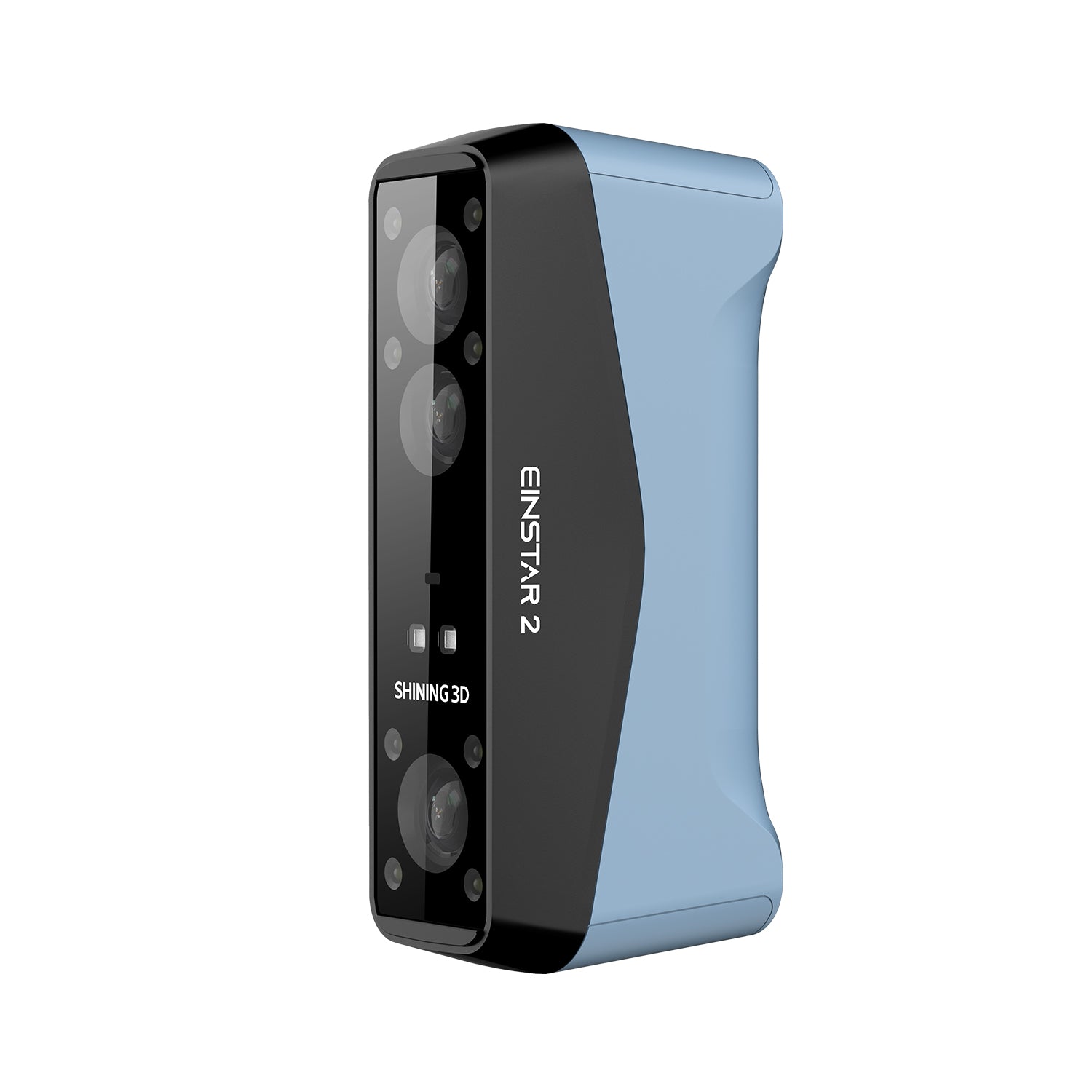

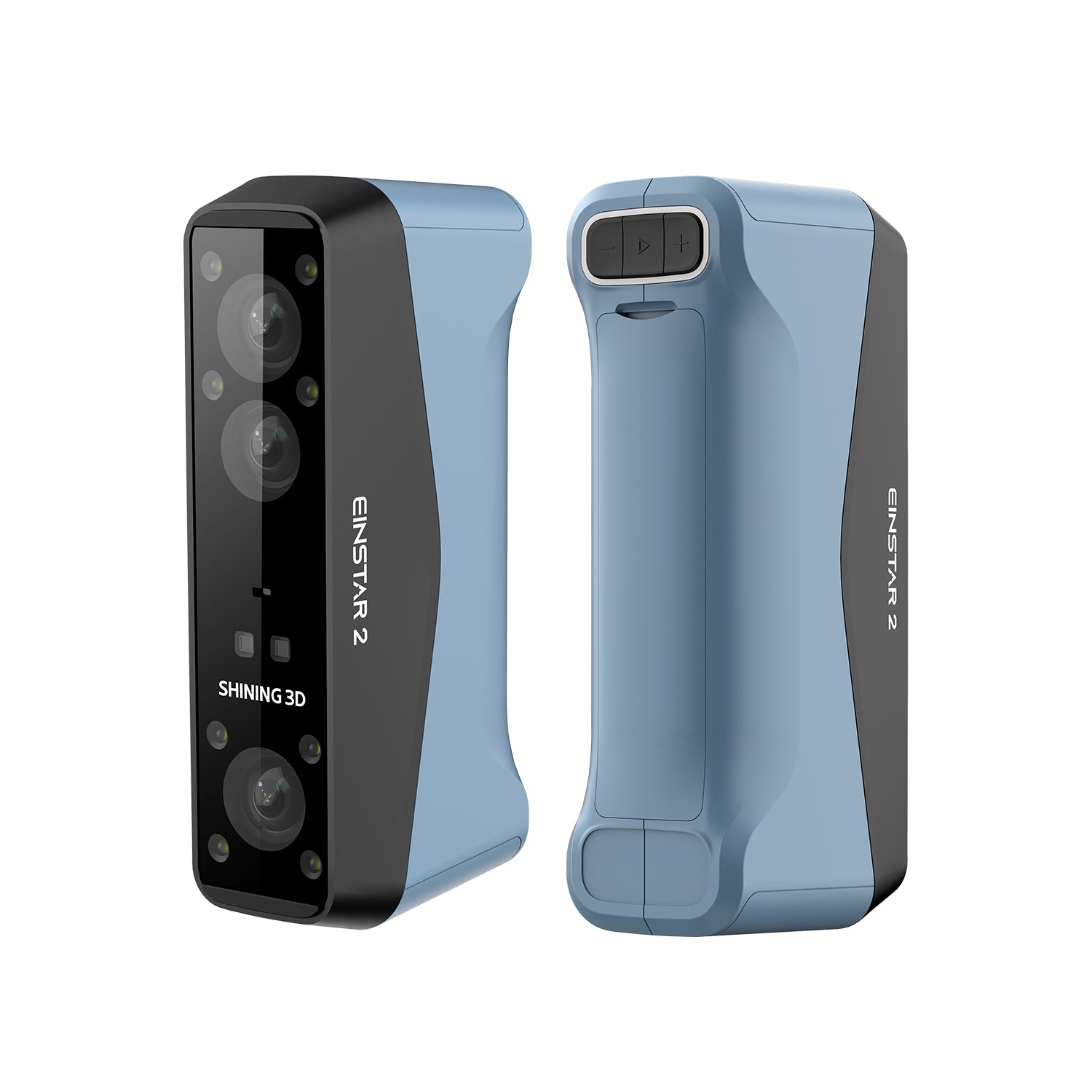

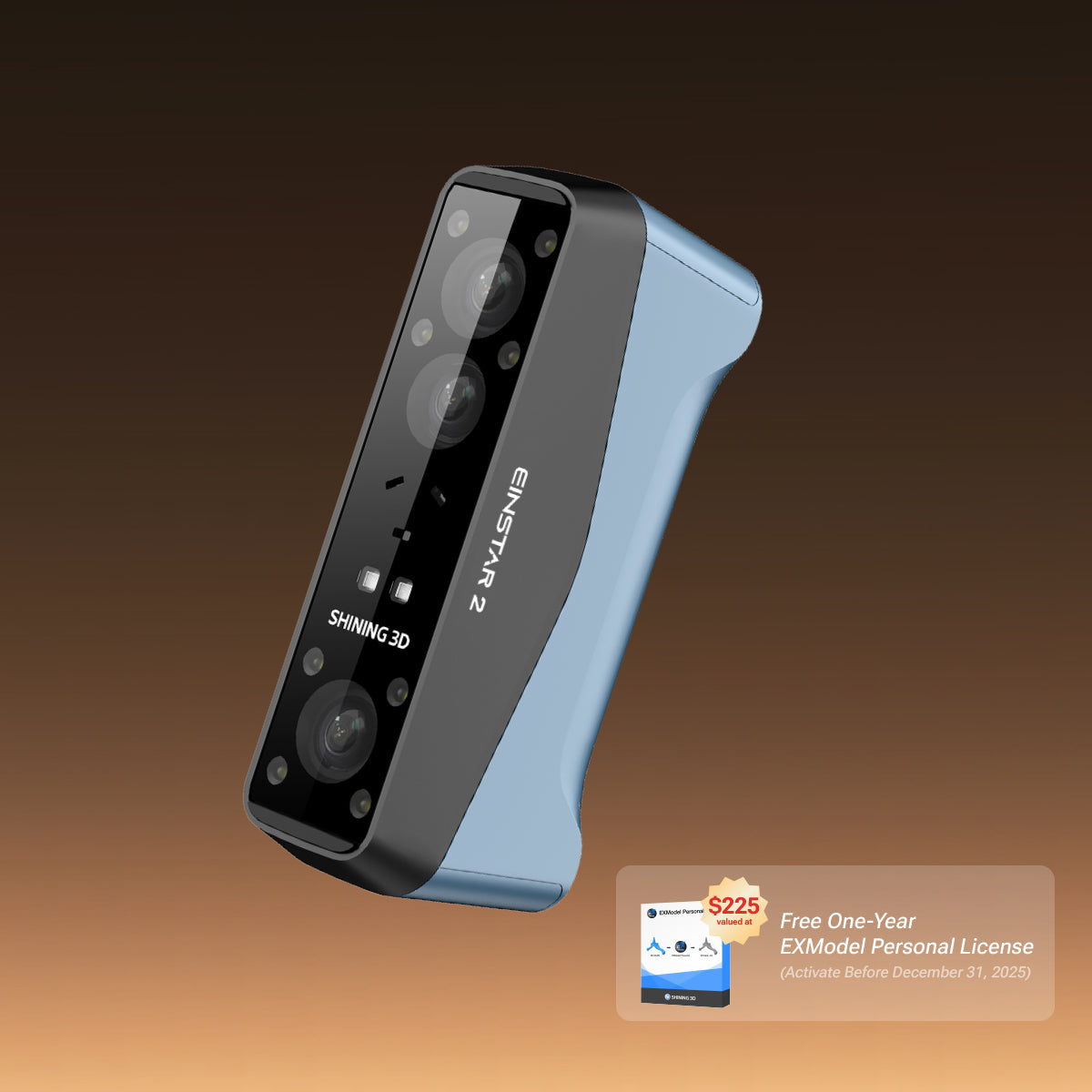

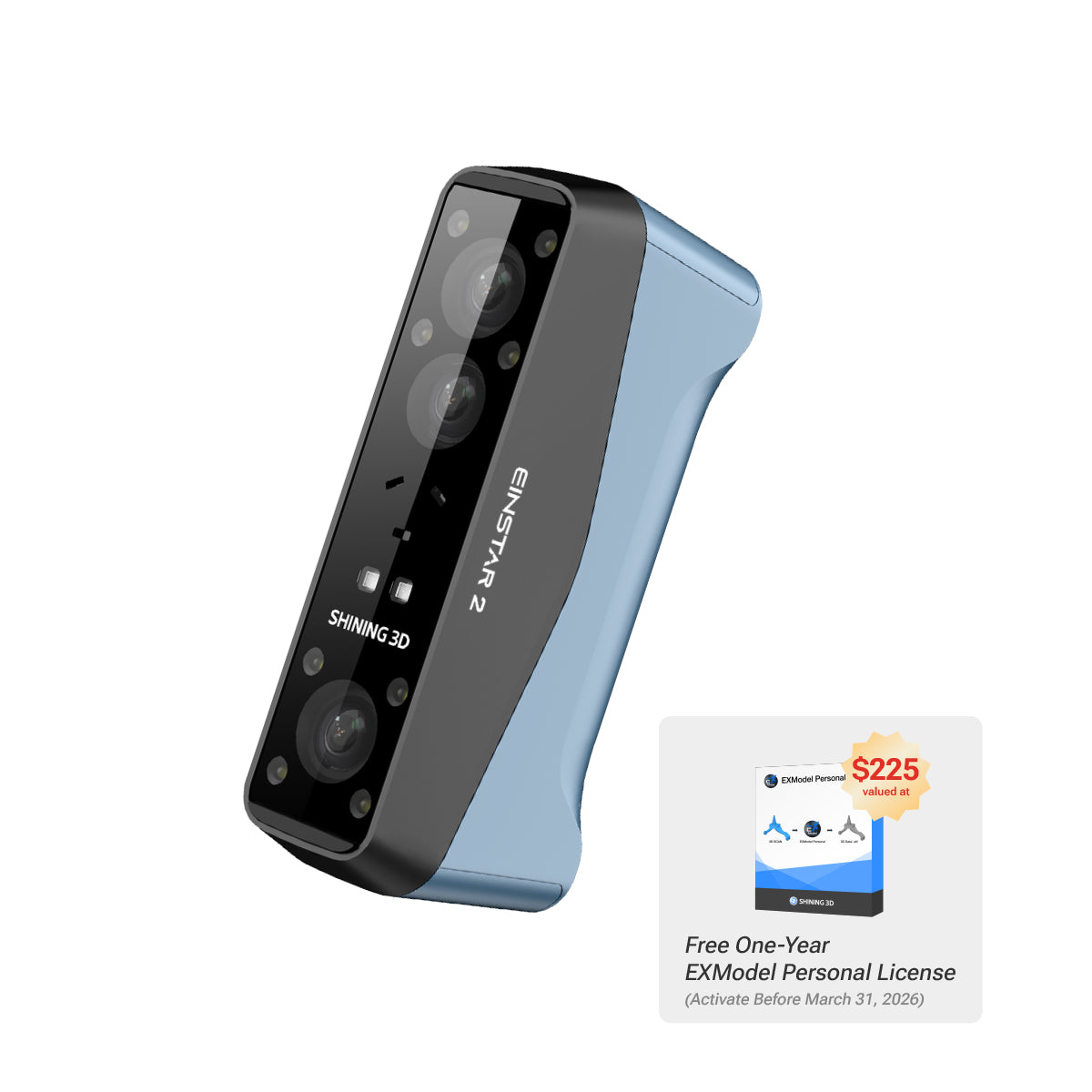

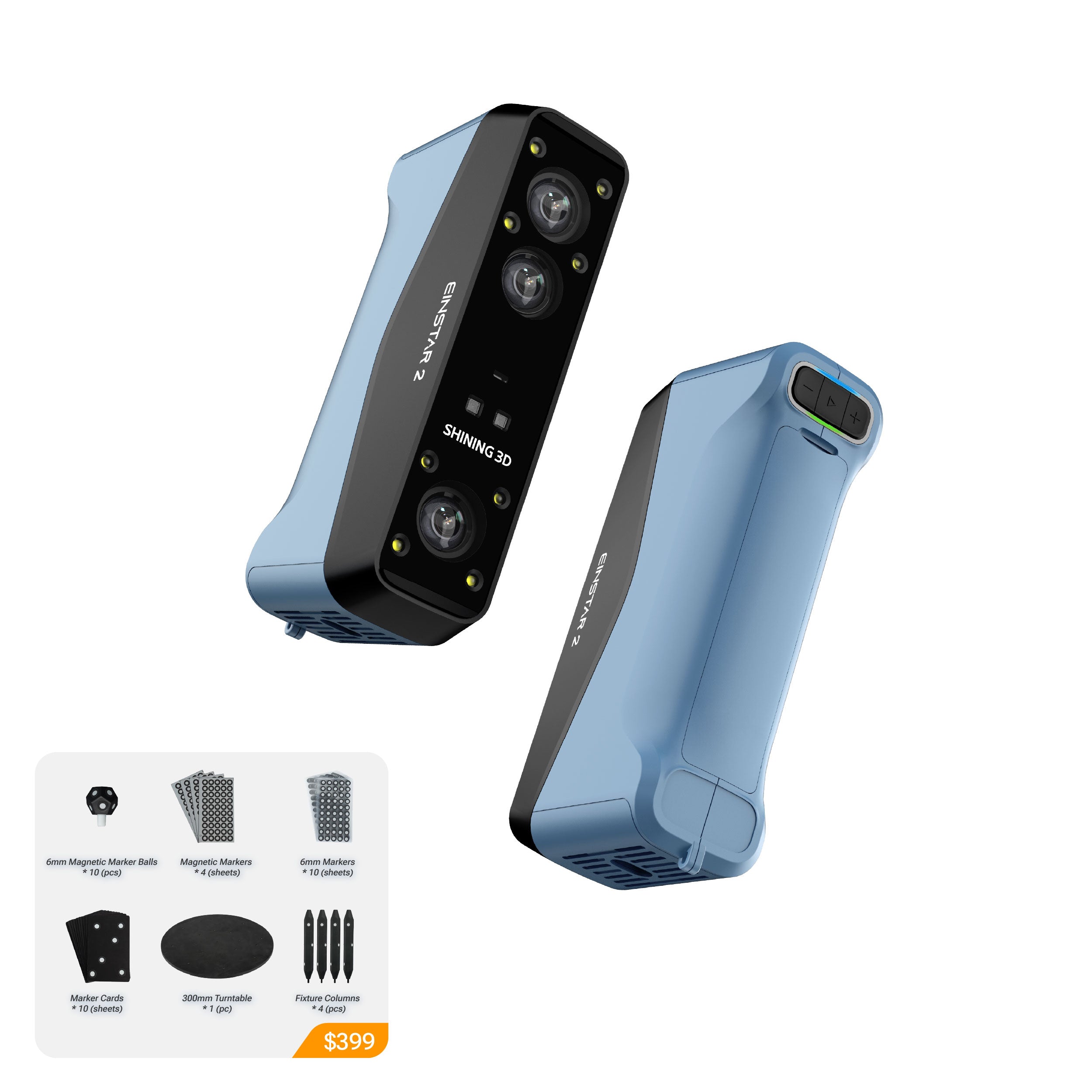

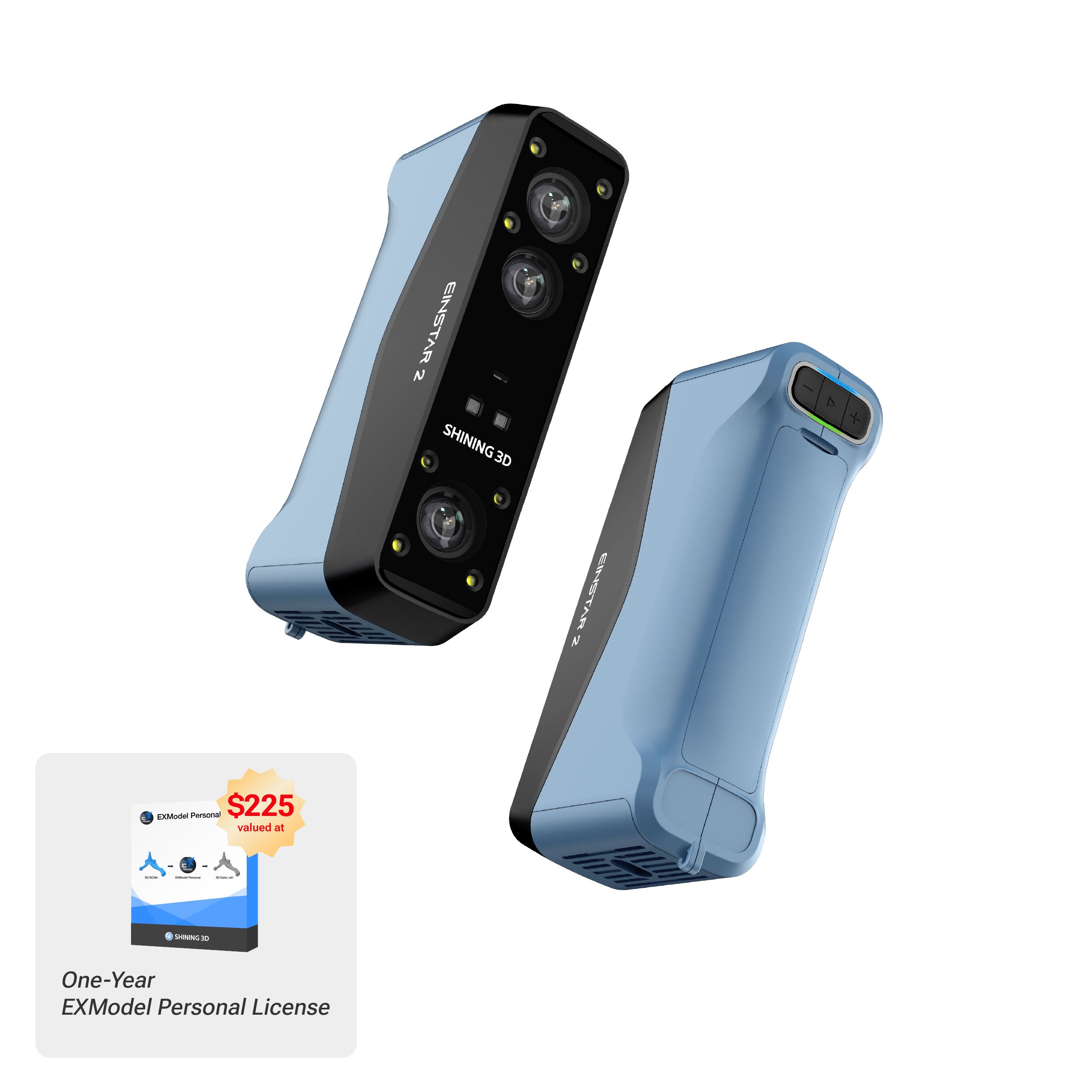

EINSTAR 2-Still EINSTAR, Even Better
Taxes excluded. Shipping Policy. Free shipping.
Existing SHINING 3D Users Exclusive Discount
→ Apply Now
Take a Closer Look
EINSTAR 2 Specification
Laser HD
IR Rapid
Laser HD: 17 Blue Laser Parallel Lines

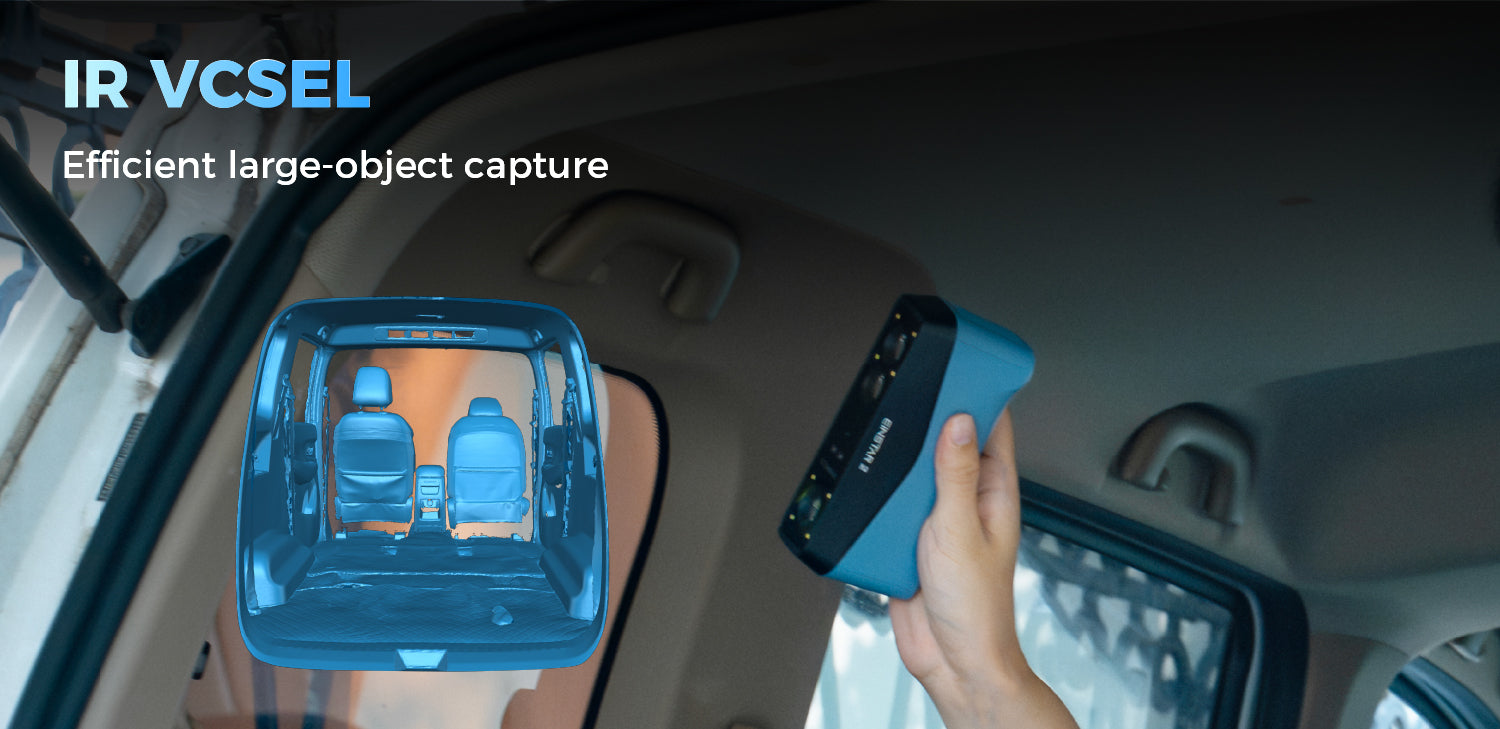

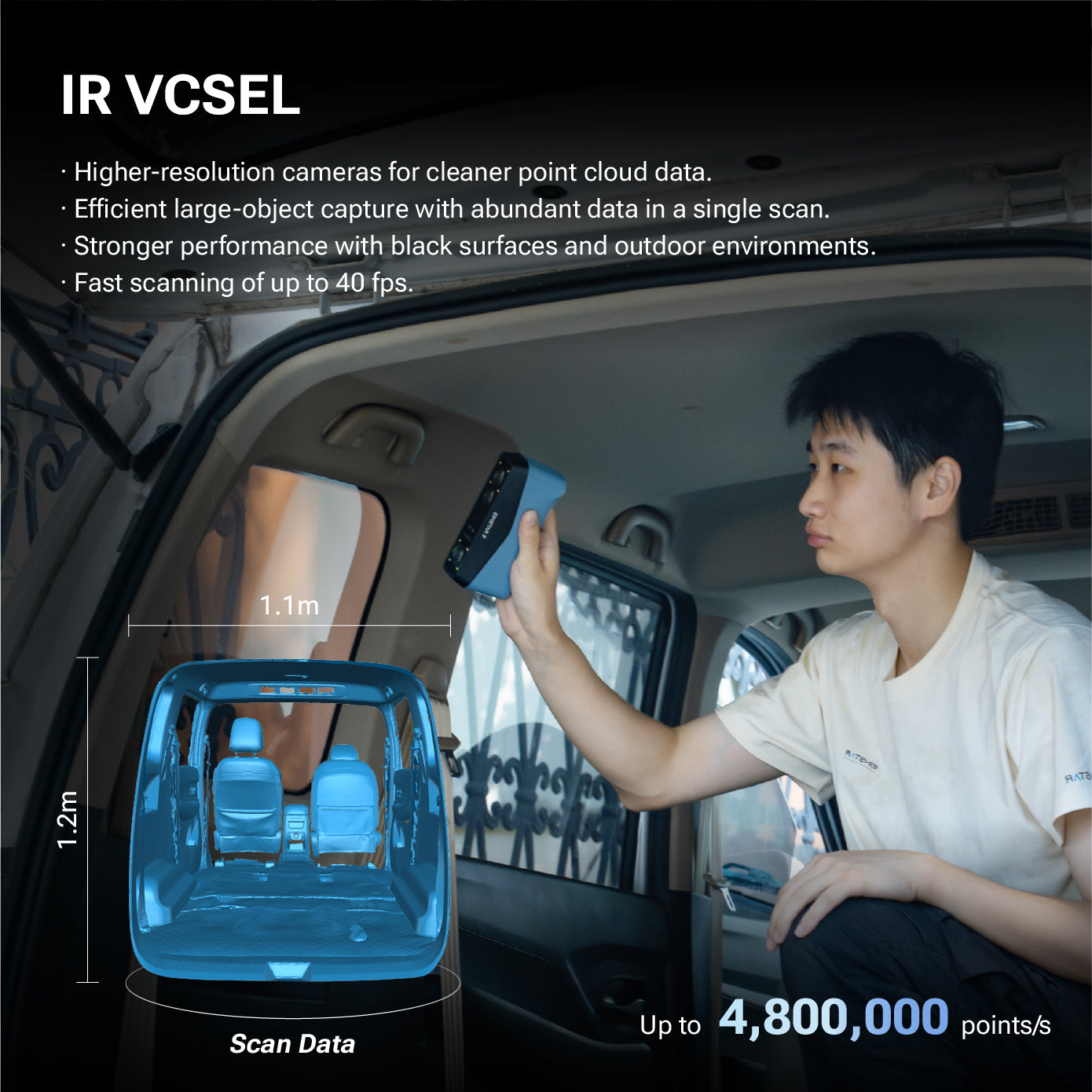

IR Rapid: IR VCSEL
Laser HD：0.05 ~ 10 mm
IR Rapid：0.2 ~ 10 mm
Laser HD: 2,500,000 points/s
IR Rapid: 1,440,000 points/s
Laser HD：100 ~ 600 mm
IR Rapid：160 ~ 1400 mm
Laser HD：490 × 580 mm
IR Rapid：1170 × 1385 mm

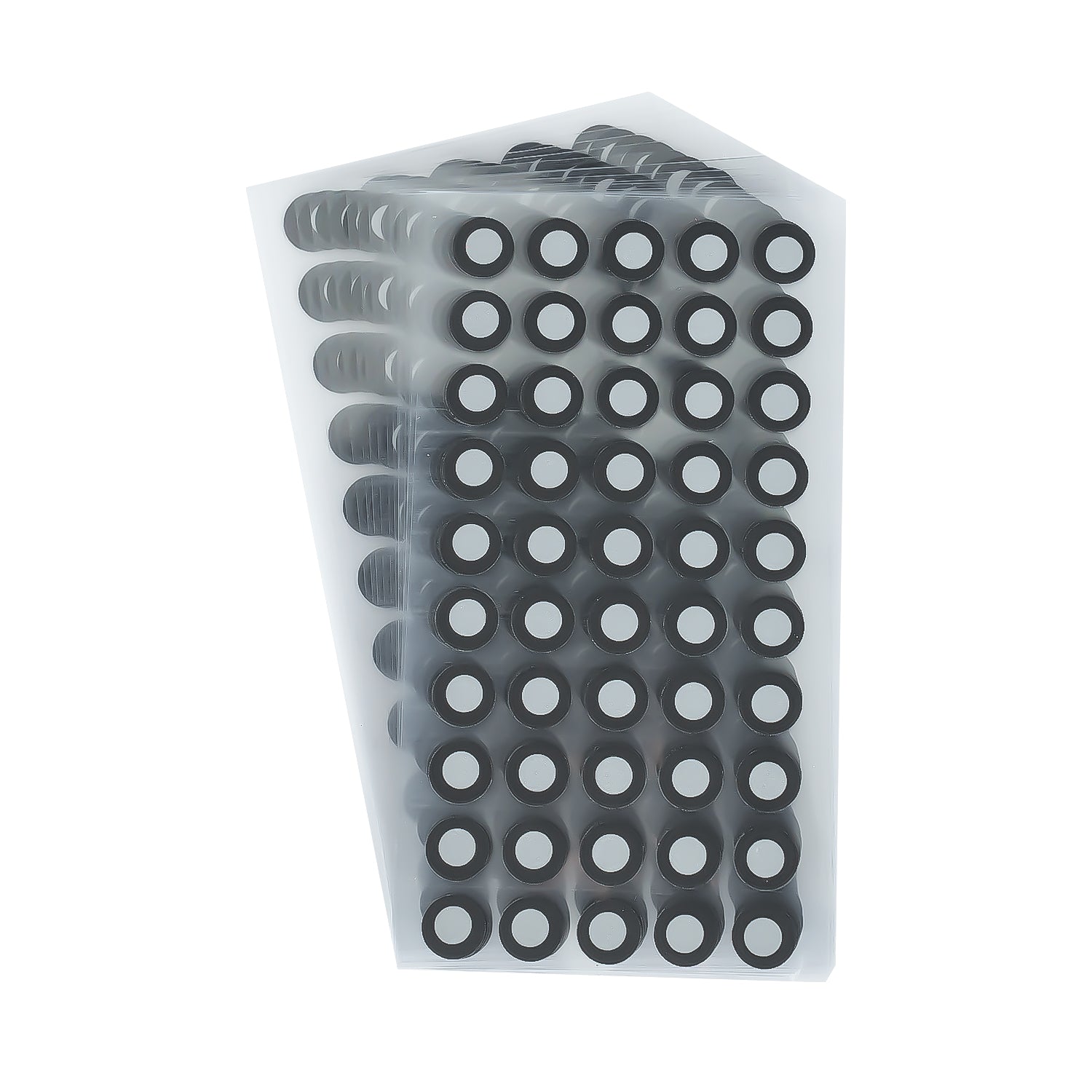

Laser HD：Global Marker/Markers
IR Rapid：Global Marker/Markers/
Features/Texture/Hybrid
Laser HD：10*10*10 mm
IR Rapid：50*50*50 mm
3D: 2MP*2
2.3 MP
STL, OBJ, PLY, 3MF, ASC
Class 2

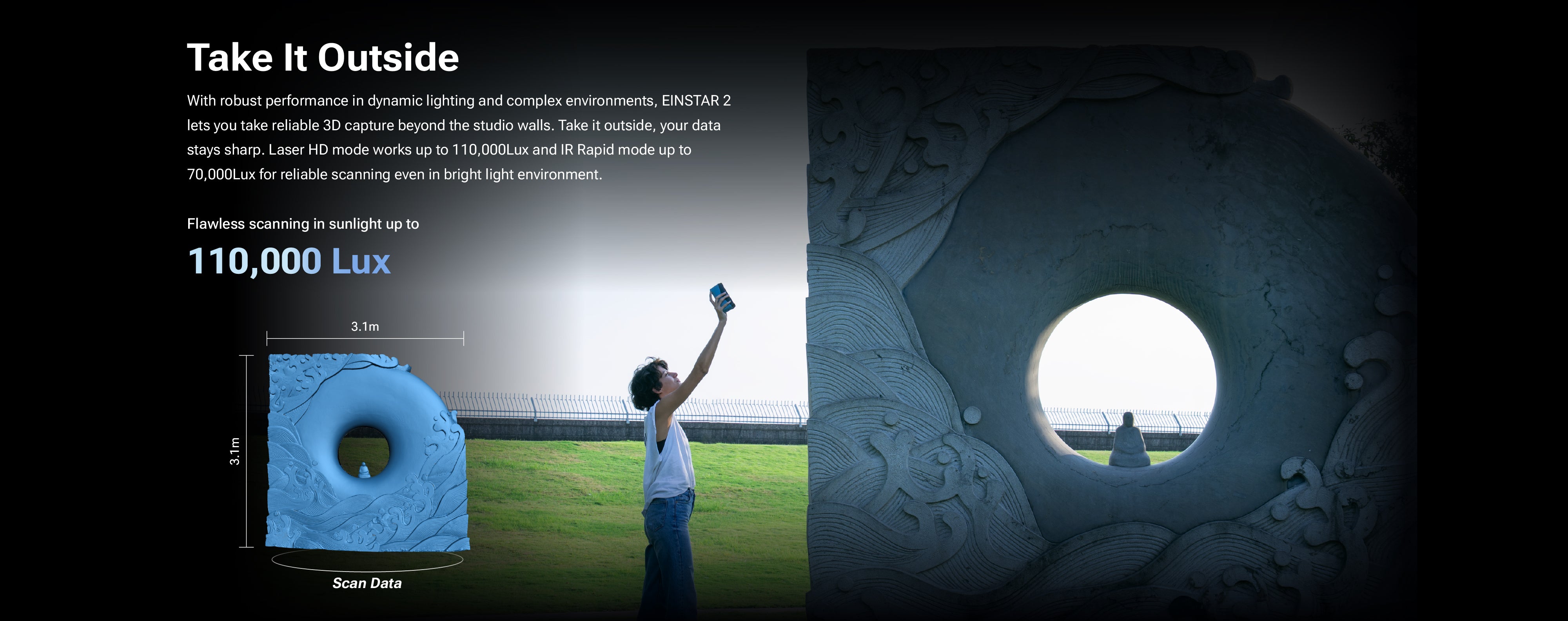

Laser HD：Below 110,000 Lux
IR Rapid：Below 70,000 Lux
Temperature -10℃ ~ 40℃

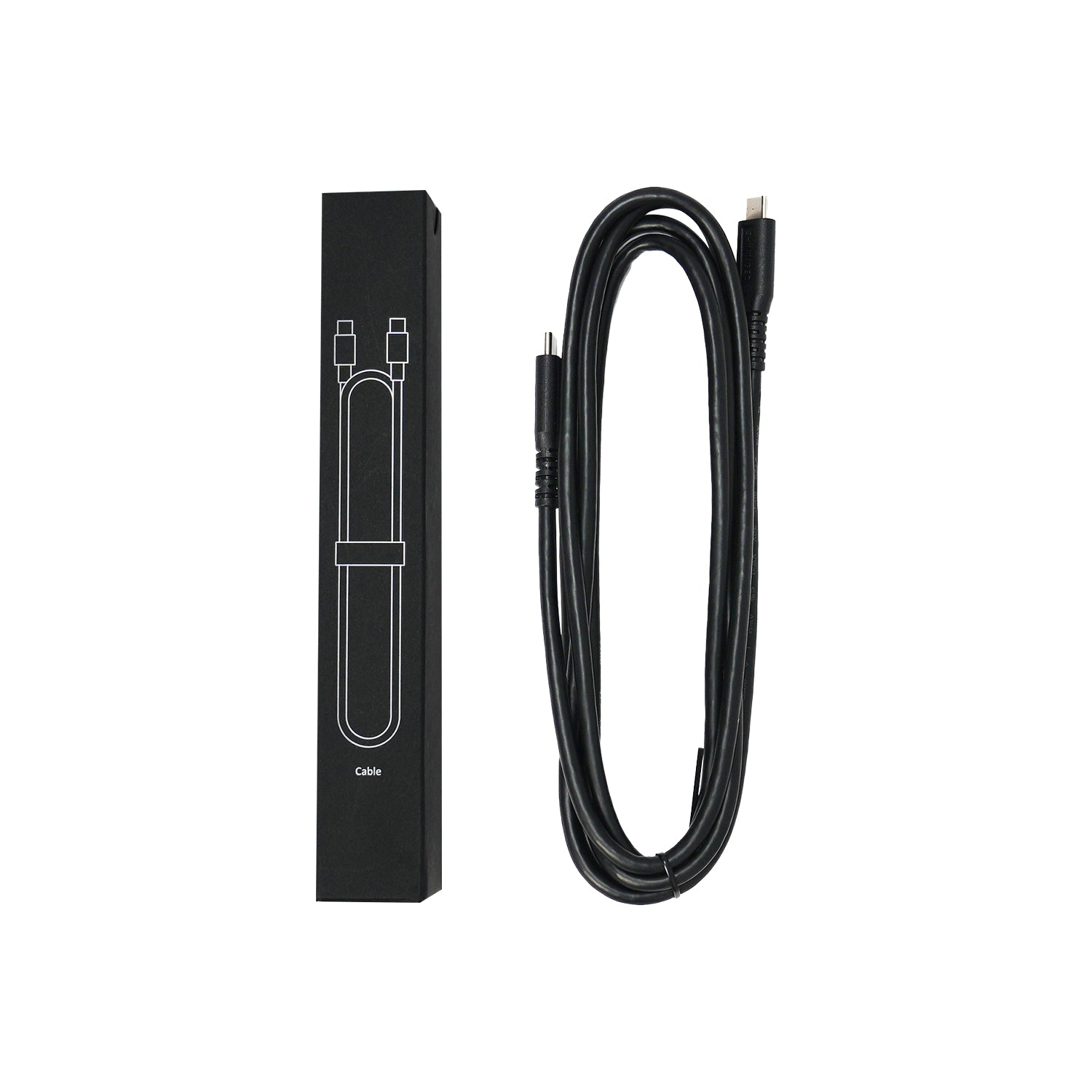

USB Type-C

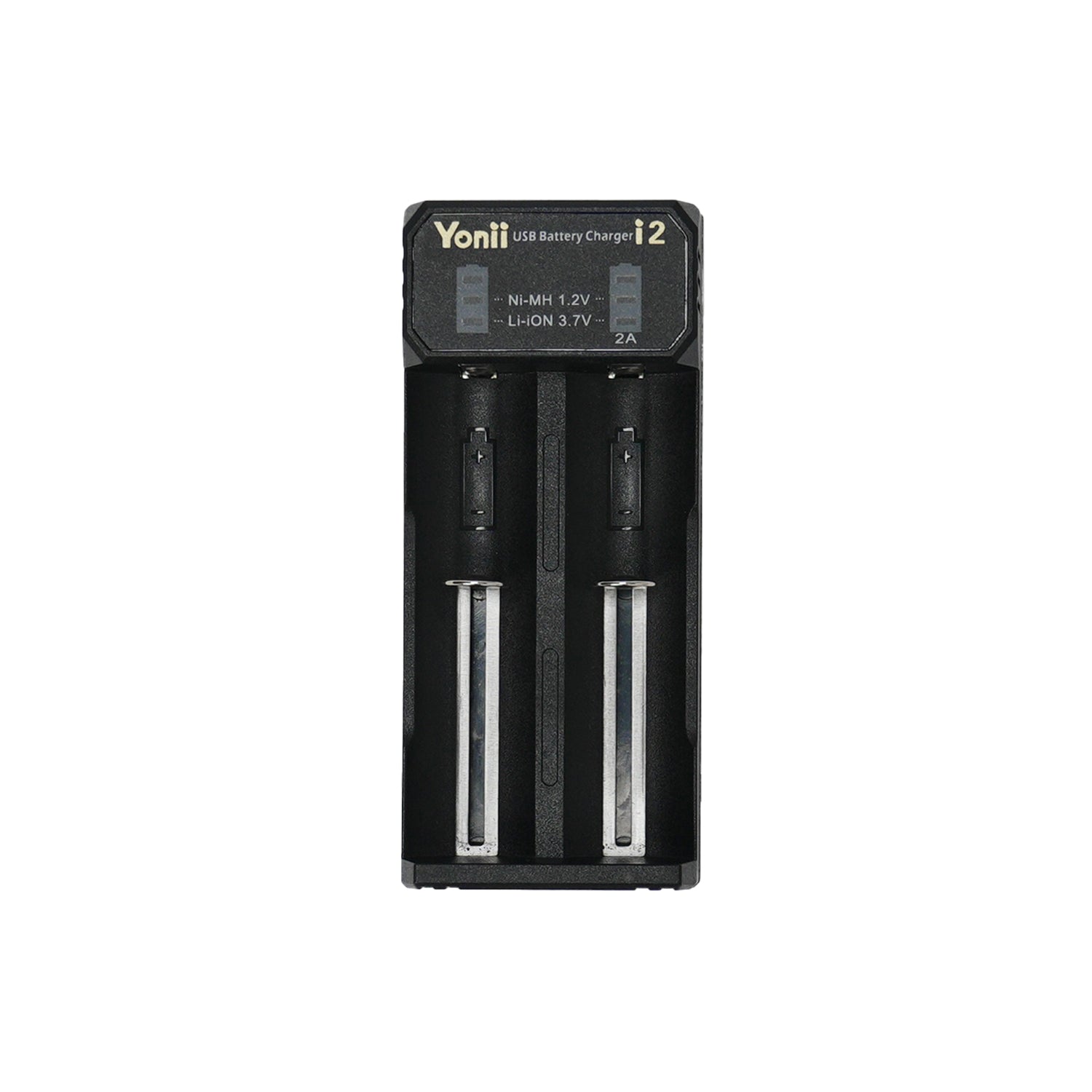

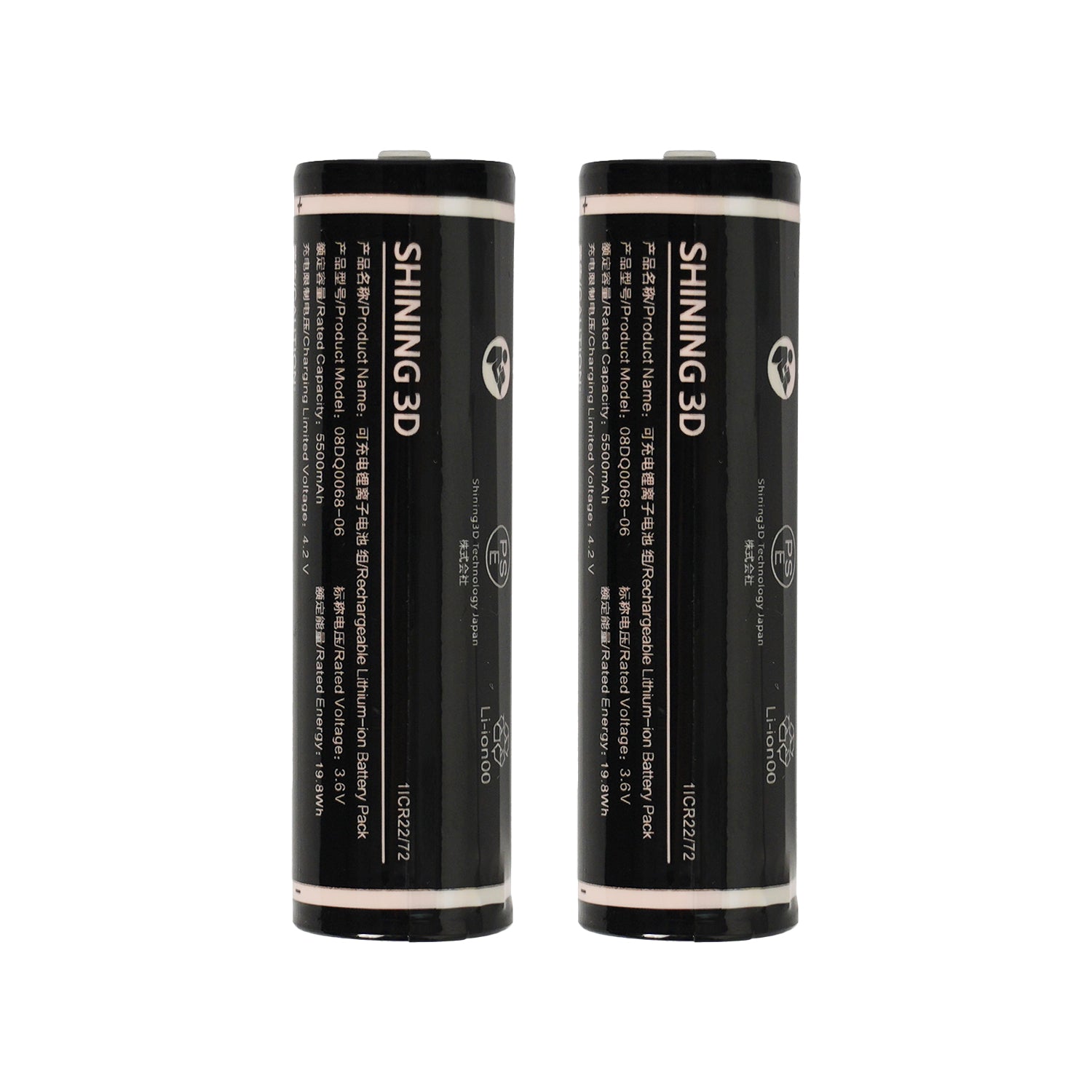

Battery: 5500mA*1

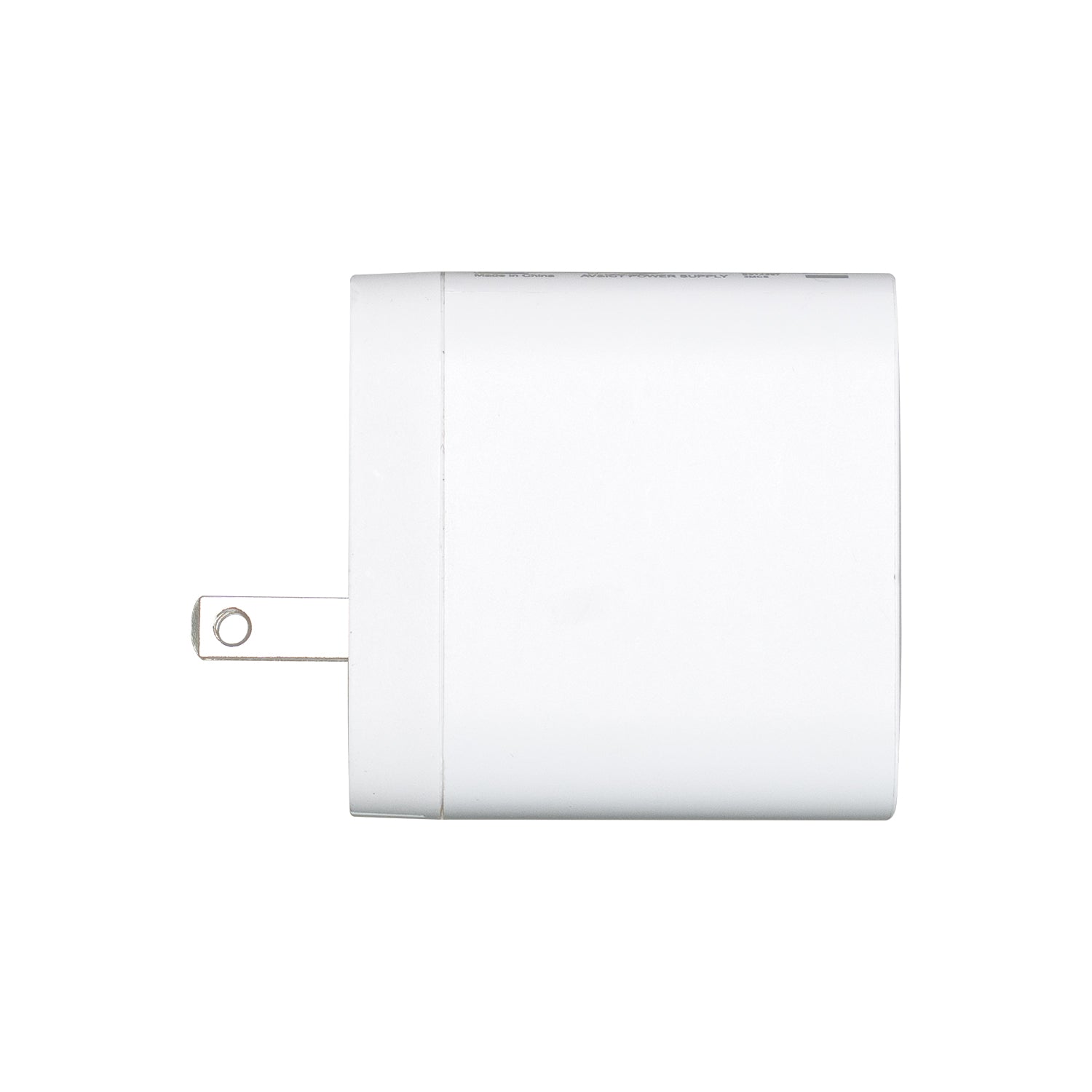

Support 60W-PD 3.0 Charger

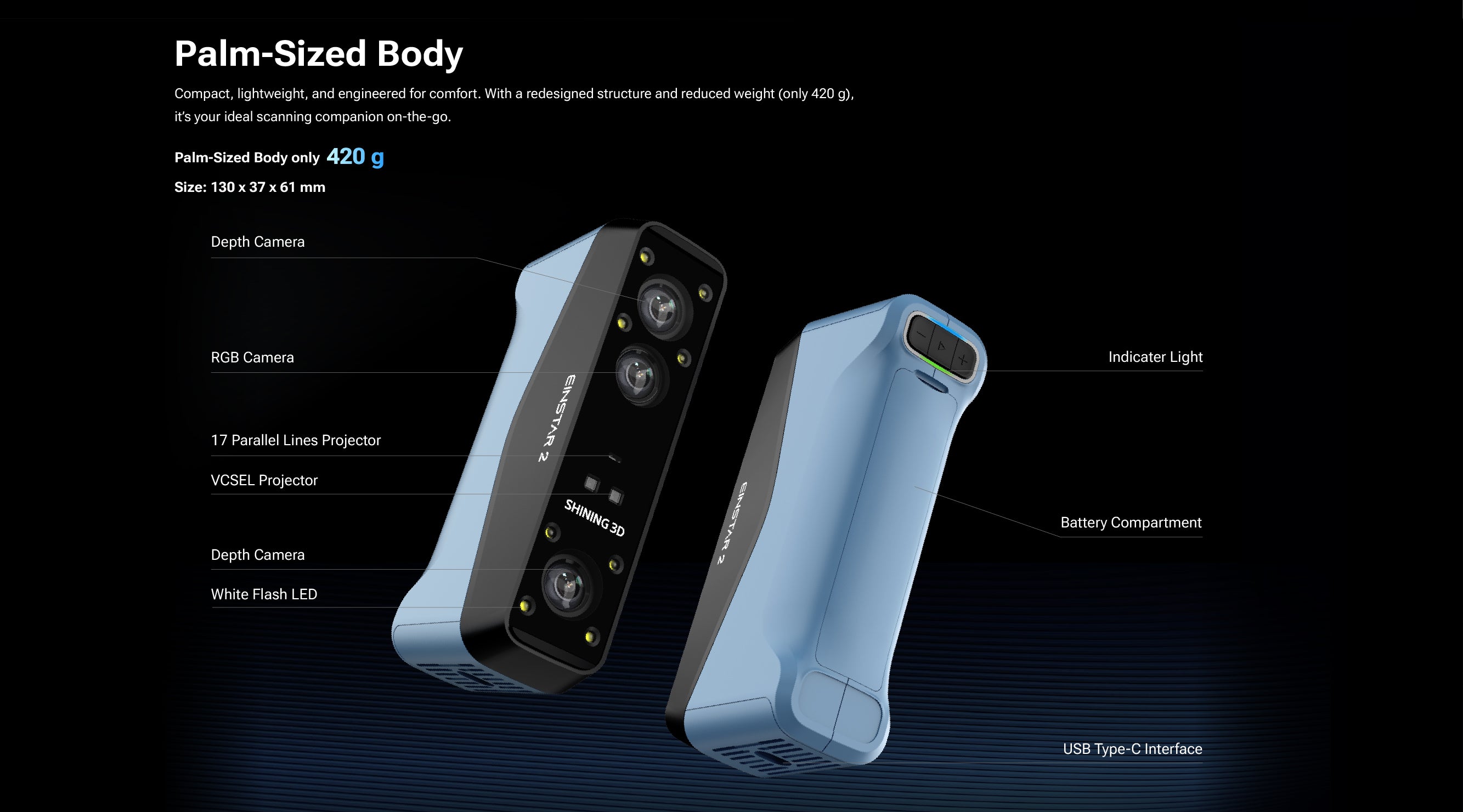

(H*D*W) ：130 x 37 x 61 mm/ 5.12 x 1.46 x 2.40 in
420g/0.92lbs (BatteriesI included)
348g/0.77lbs (Batteries Excluded)
CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Win11, Professional 22H2 (64-bit);
Graphics card: NVIDIA GeForce RTX 3060 Laptop GPU or above;
VRAM: 6 GB or aboveRAM (Minimum): 32 GB, DDR5 dual-channel;
RAM (Recommended): 64 GB or above,
DDR5 dual-channel;
Interface: USB 3.0;
Processor: 13th Gen Intel®Core™ i7-13700H or above
FAQs
How it compare to original EINSTAR？
The EINSTAR 2 is a major step up from the original. It introduces a new laser mode for capturing finer details on small objects and can handle reflective surfaces without spray. The tracking in IR mode is even better, and the true wireless design offers greater flexibility. Furthermore, the new software delivers dramatically faster processing speeds and many other refined features to explore.

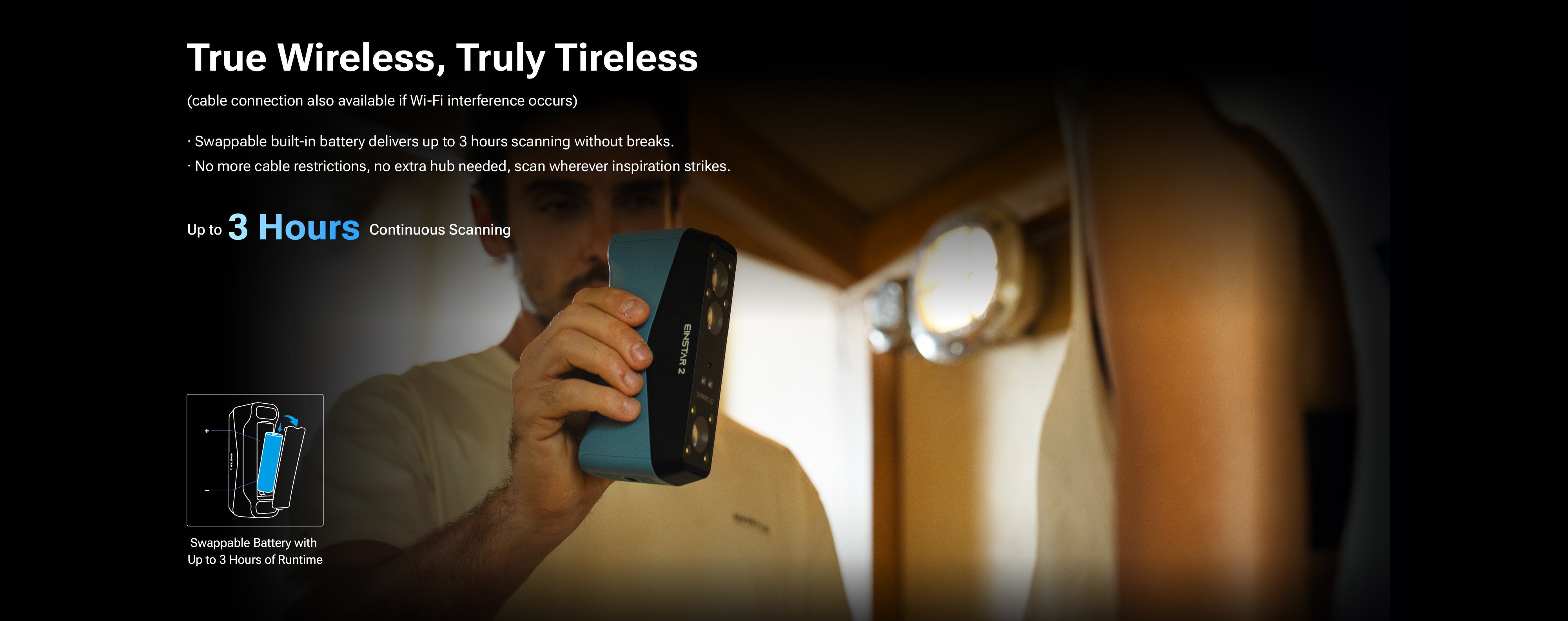

What is true wireless of EINSTAR 2 means?
EINSTAR 2 has a built-in Wi-Fi module for wireless connection which means there is no additional accessories required, save setup time.The whole scanning process is wireless. A USB Type-C cable connection is also available for stable operation in case of Wi-Fi interference.

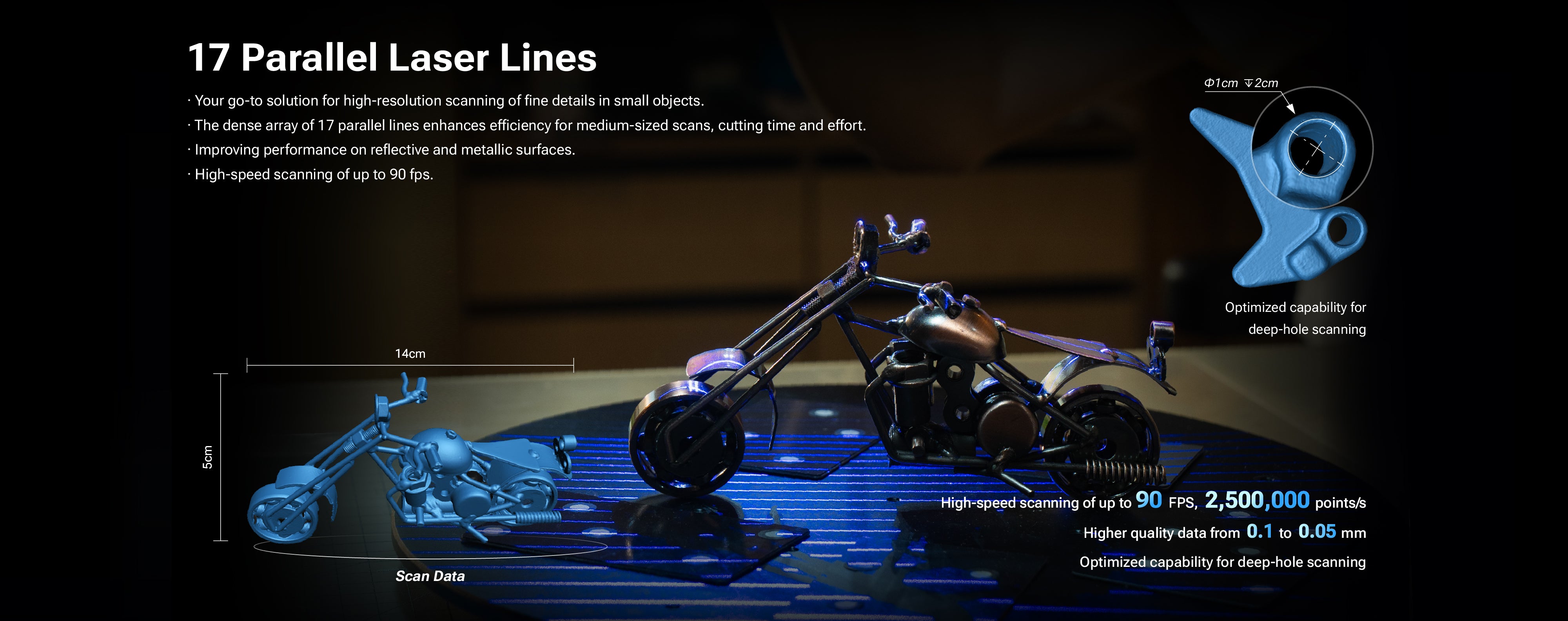

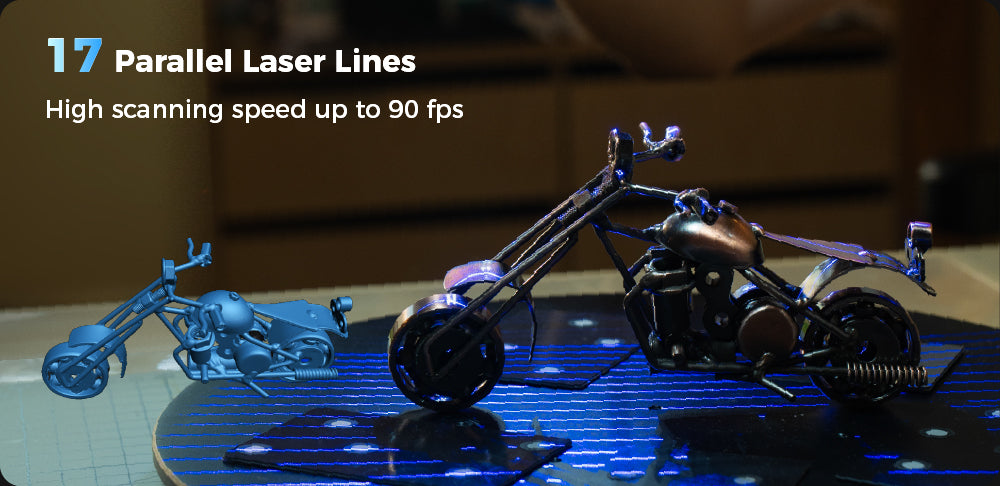

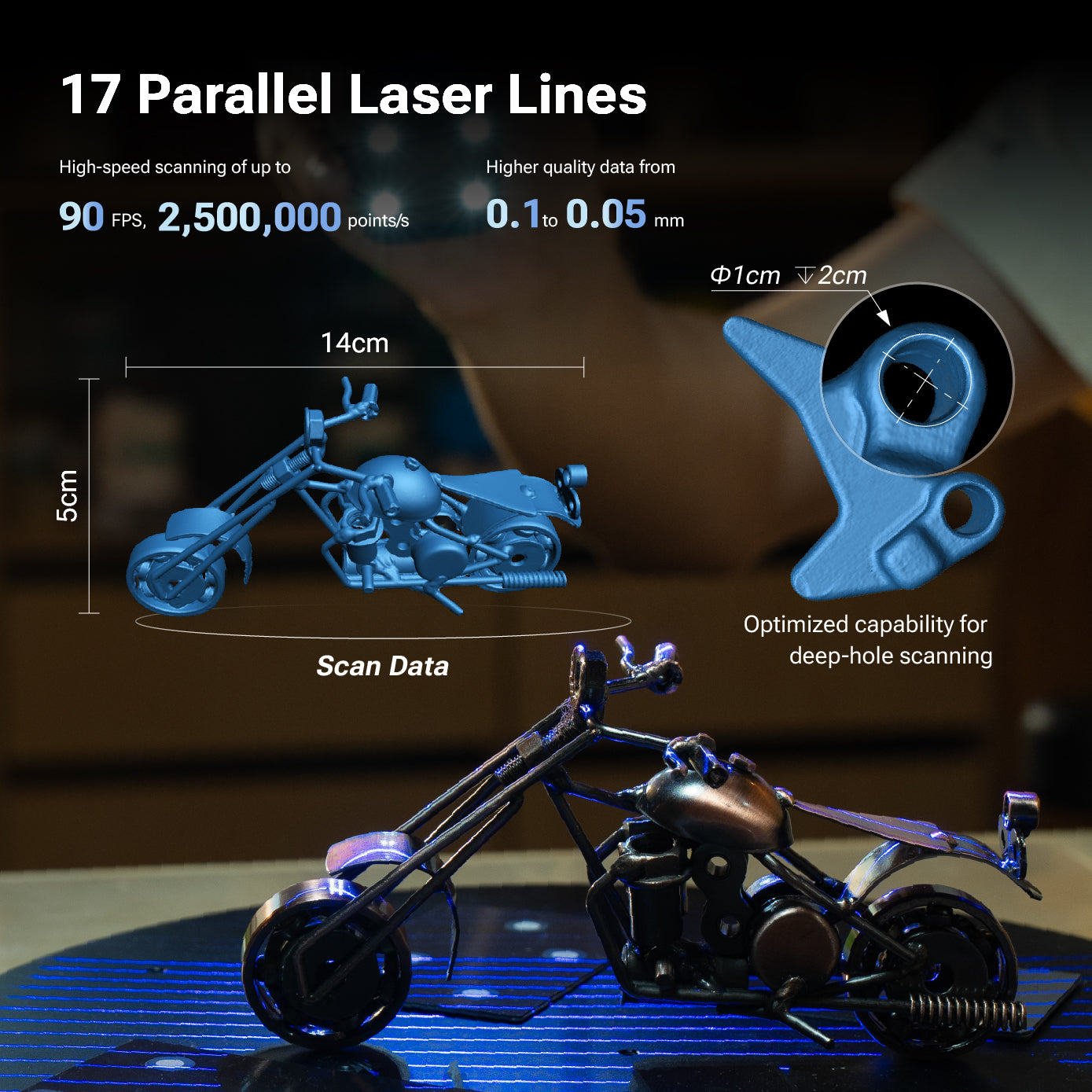

What is the advantage of the 17 parallel laser lines compared to other laser patterns?
The 17 parallel laser lines represent another innovation from SHINING 3D, striking an optimal balance between speed and detail. Compared to a 7-line pattern, it captures sufficient detail quality while expanding the effective scanning range to cover medium-sized objects, completing such scans much faster. This design positions itself as a cost-effective solution between parallel-line and crossed-line systems. Ultimately, it grants the EINSTAR 2 a versatile scanning capability comparable to that of scanners equipped with multiple dedicated laser sources.
What is the object type and size EINSTAR 2 can scan？

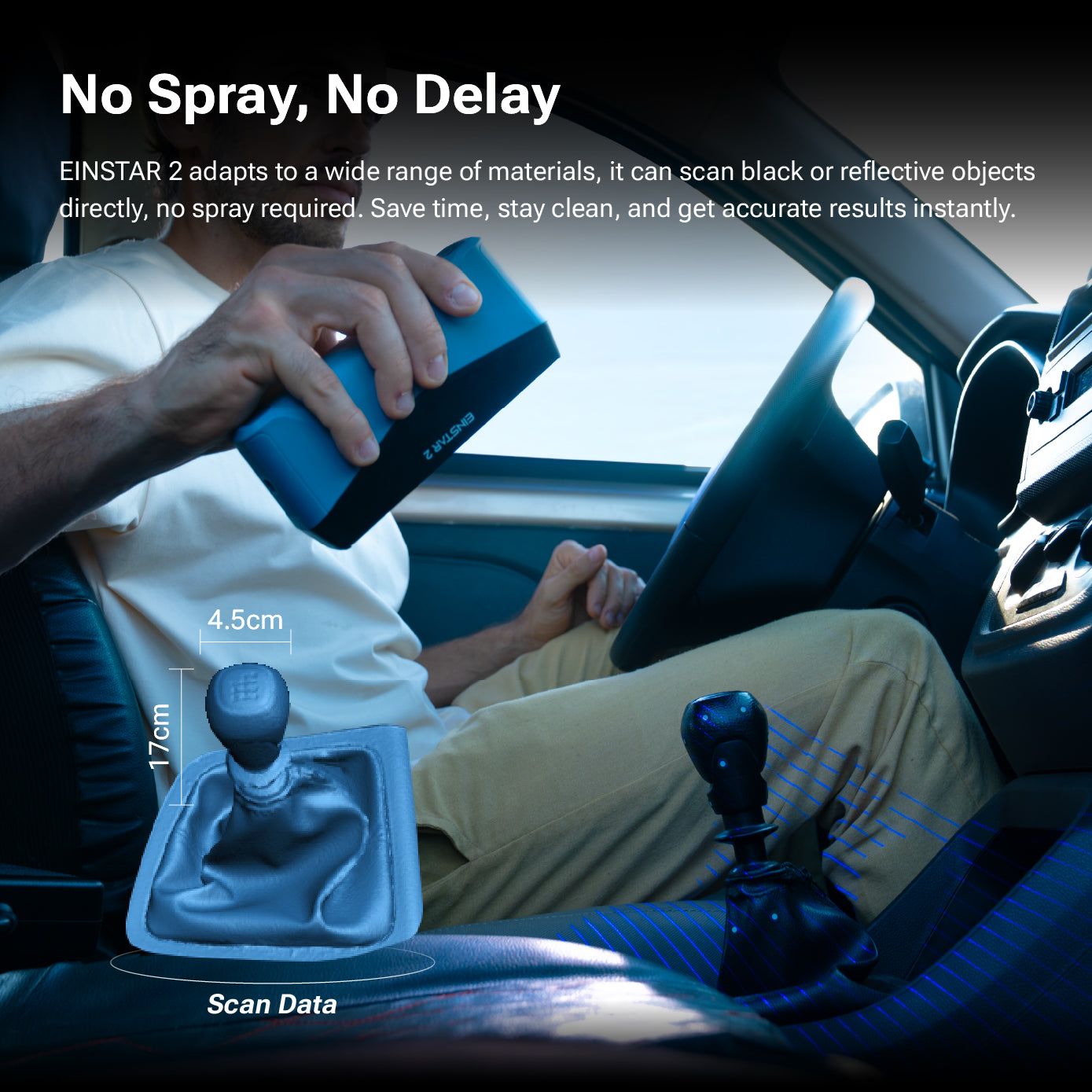

From tiny details (5mm) to large scenes (10m), EINSTAR 2 can handle it. It switches between two modes: the laser mode for small to medium objects and the infrared mode for large object and expansive areas. This flexibility allows it to tackle most materials lik eblack or reflective surfaces.
What is the PC configuration required
Win11, Professional 22H2 (64-bit);
Graphics card: NVIDIA GeForce RTX 3060 Laptop GPU or above;
VRAM: 6 GB or above;
RAM (Minimum): 32 GB, DDR5 dual-channel;
RAM (Recommended): 64 GB or above, DDR5 dual-channel;
Interface: USB 3.0;
Processor: 13th Gen Intel®Core™ i7-13700H or above
If you want smooth marker free laser scan experience 64GB RAM is necessary.
