3D Scanner Markers (3mm)
Taxes excluded. Shipping Policy. Free shipping.
Reusable Solutions
Easy to Use
Incompatible with EINSTAR 3D Scanner.
Pay with Ease
Trusted Delivery
3D Scanner Markers (3mm)
Sale price$100.00 USD
Regular price$100.00 USD (/)
Description
Type And Model

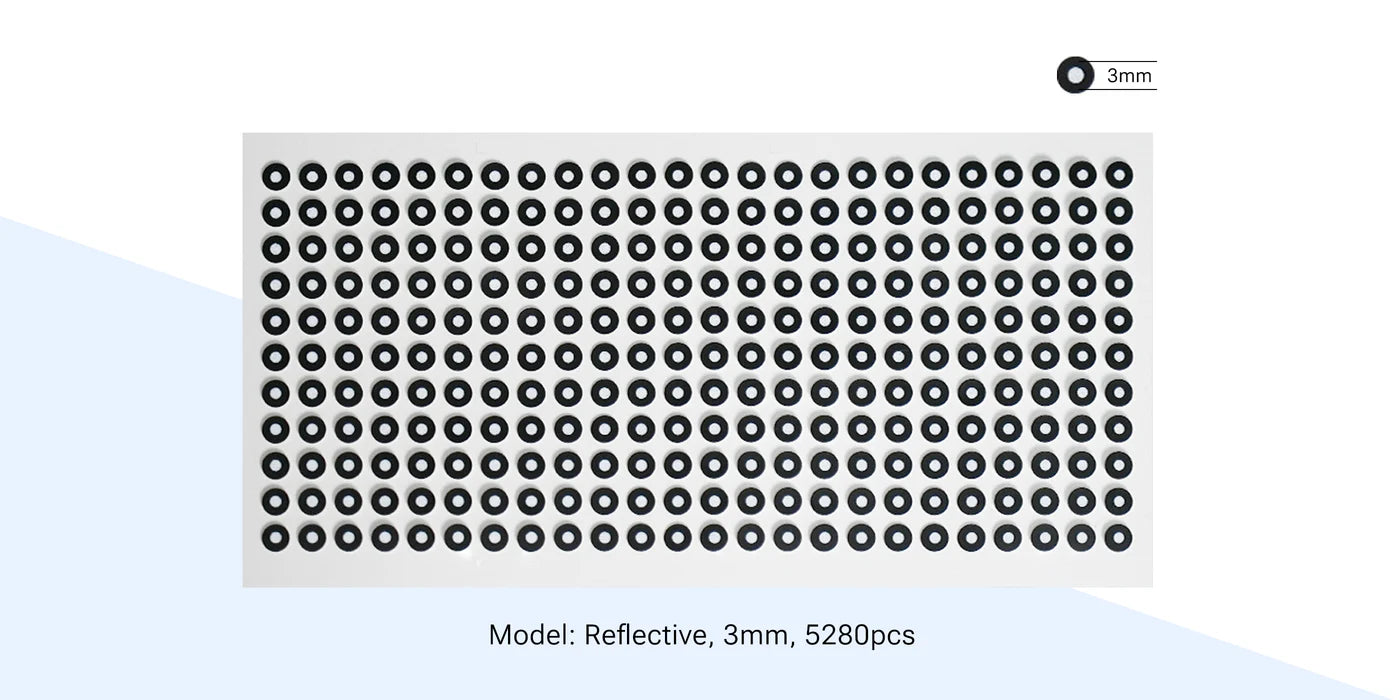

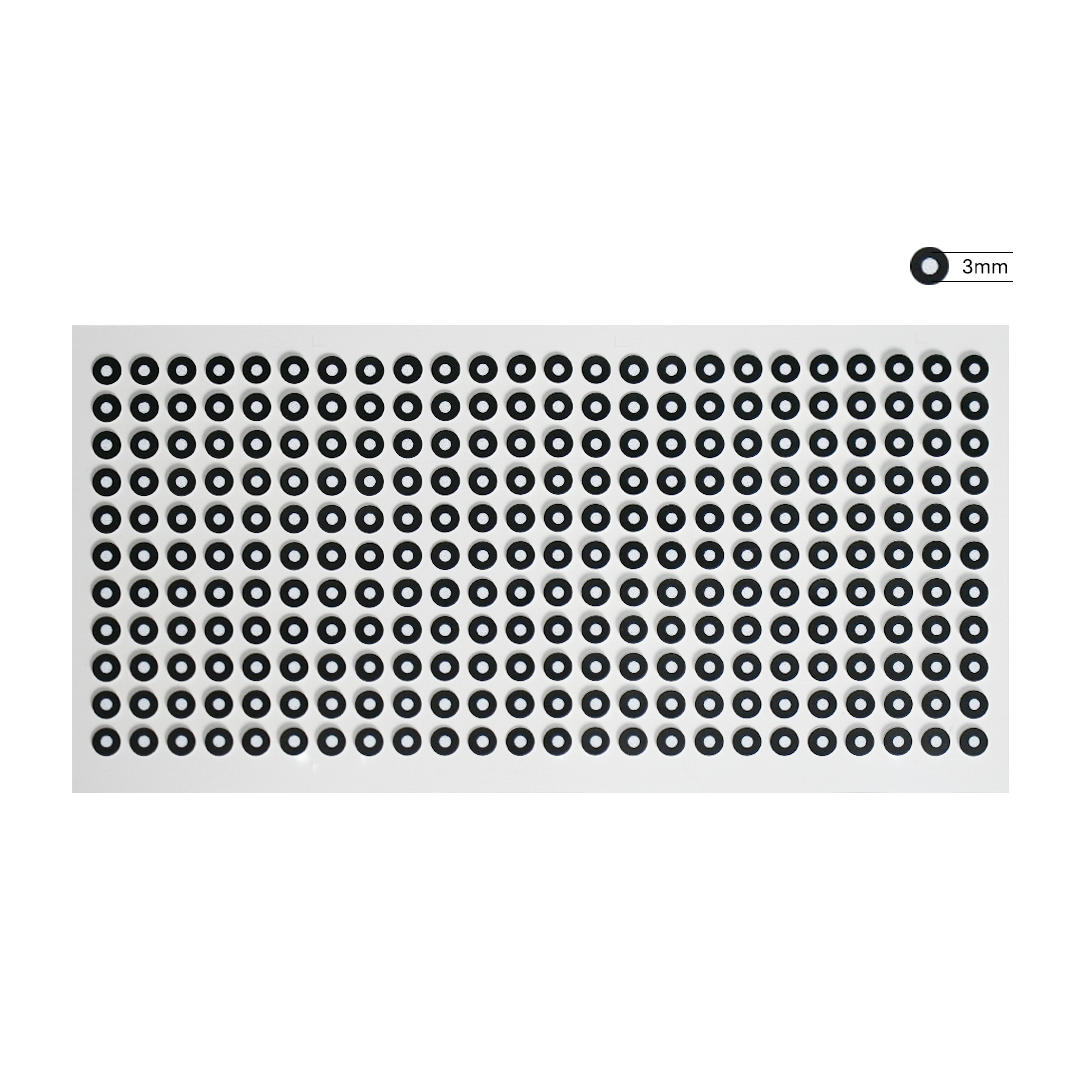

3.0mm Size: Inner diameter 3.0 mm,outer diameter 6.0 mm, total 5280 points.
How To Use
FAQs
How many markers should I use for the best tracking experience?
Use 8 to 15 markers per single frame for optimal tracking. A minimum of 4 markers per frame is required.
What is the recommended distance between markers ？
Place markers at a distance of 6 to 10 cm, with a minimum distance of 2 cm.
When markers alignment is suggested?
- the data accuracy matters
- the scanning object doesn't have rich geometric features or the surface geometry is in repeating patterns (symmetrical objects, cylinders, planes, etc)

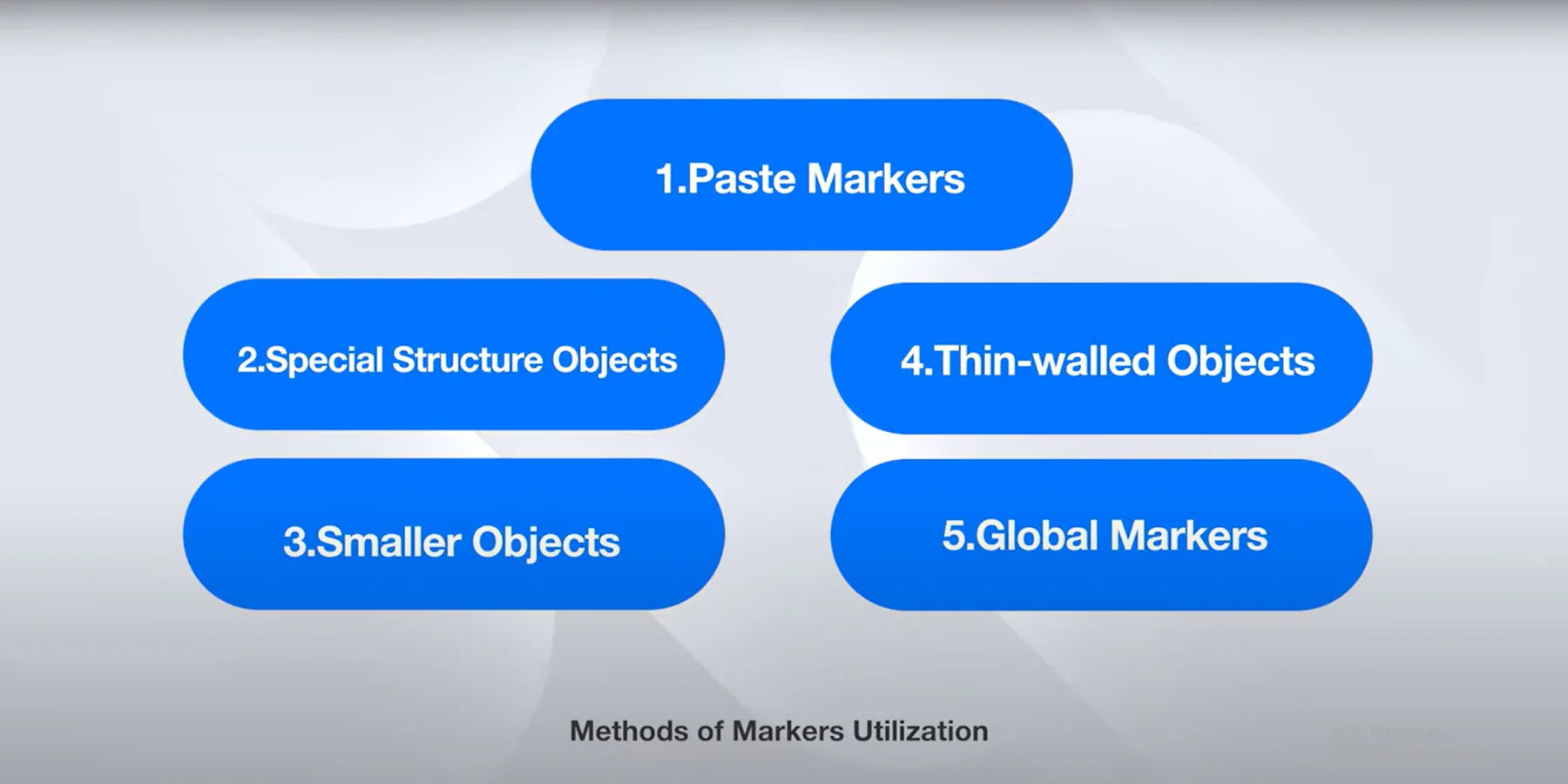

How to use markers?
- Stick markers in a random, non-linear pattern.
- While scanning, make sure at least 4 markers in each frame can be taken.
- Control the number of markers seen on the camera view.
- Markers should be stuck on the flat surface area and keep the marker surface flat.
- Use the markers provided with the device only. Other markers can result in bad accuracy or not to be seen.
- Some cases like small objects, we suggest distributing the markers on a black surface around the object.
