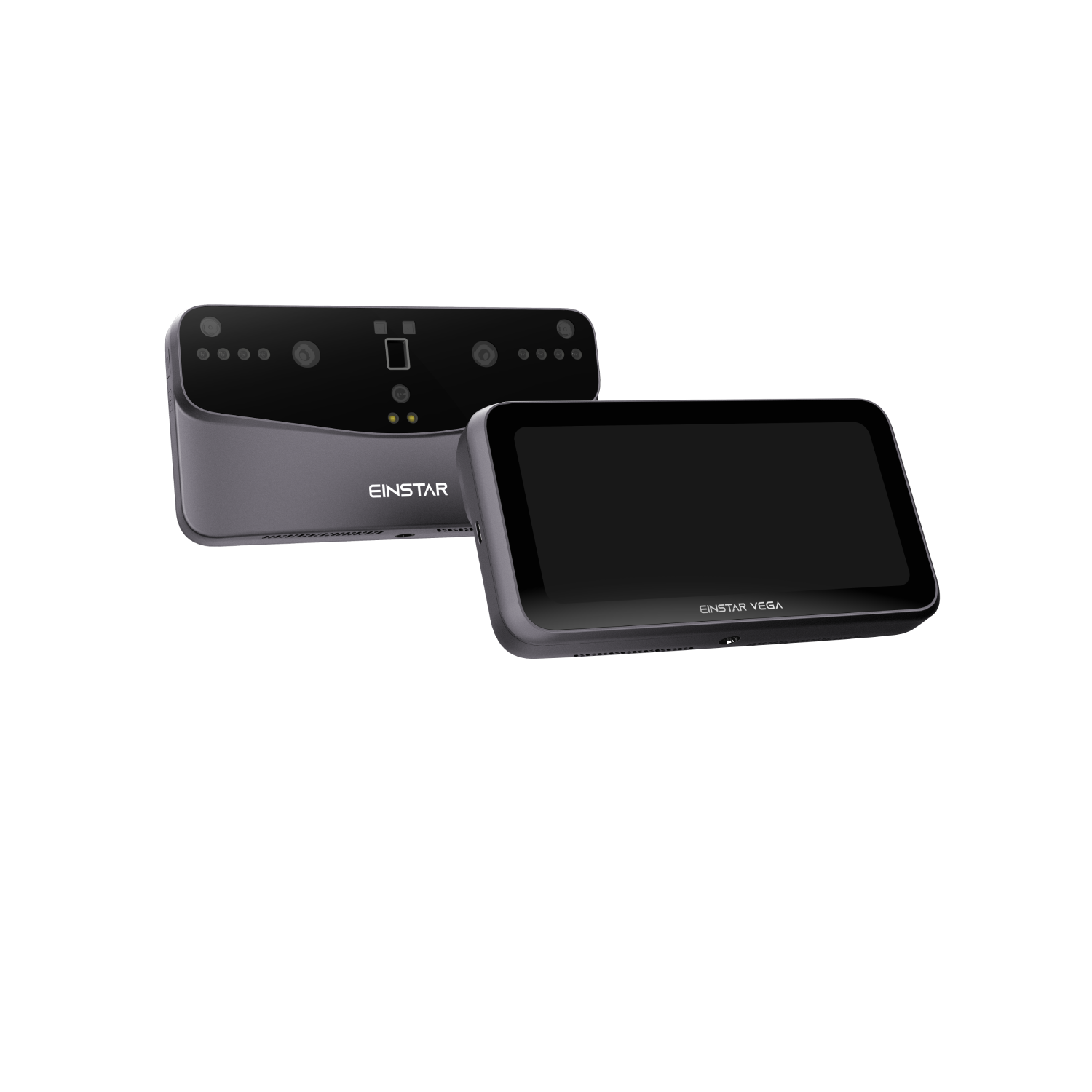

EINSTAR VEGA-Wireless All-In-One 3D Scanner
Taxes excluded. Shipping Policy. Free shipping.
Take a Closer Look
12mm Markers Alignment
Same Coverage
12mm Markers = 40% 6mm Markers
Scanning Rewind
Support to Correct Data Alignment Error during Scanning Process
Auto Detecting the Base Plane
When scanning objects placed on a base-plane, such as turntable, table, or the ground, enabling this feature will intelligently remove the detected base-plane before and during the 3D scan.
48-Megapixel RGB Camera For Lifelike Colors that Never Fade
Before
After
EINSTAR VEGA Specification
HD Mode
Fast Mode
HD Mode: Infrared MEMS
Fast Mode: Infrared VCSEL
HD Mode: 0.05mm～3mm
Fast Mode: 0.5mm~10mm
HD Mode: up to 15 fps
Fast Mode: up to 20fps
HD Mode: 100-350mm
Fast Mode: 270-1500mm
HD Mode: 2MP
Fast Mode: 1.3MP
Feature; Texture; Markers; Hybrid
48 MP
ply; stl; obj; asc
Yes
Limited edition : 643g;
Regular edition : 535g
180mm*95mm*26.5mm
(L*W*H)
8-core CPU, 2.4GHz
32 GB LPDDR4 Memory
32GB eMMC + 512GB SSD
65W fast charging, supports PD/PPS protocols
Wi-Fi 6, USB Type C
6.4'' 2K OLED
10
6 DoF
-10~40℃
0 to 90% RH (non-condensing)
380*305*155mm
IP50
Built-in 5000mAh；
External power bank charging supported
No computer required for 3d scanning operation;
StarVision（Data processing program on PC）：Windows10/11(64-bit); macOS
Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip )
3D Data Gallery
FAQ
Don't I need any PC to connect?
You can perform post-processing directly on the Vega. However, for more detailed processing, you might need to use a computer.
How long does it work by its battery?
The continuous working time is 1.5-2 hours. You can also connect it to a power bank for extended use.
What is the working ambient temperature range?
The working temperature range is -10°C to 40°C.
