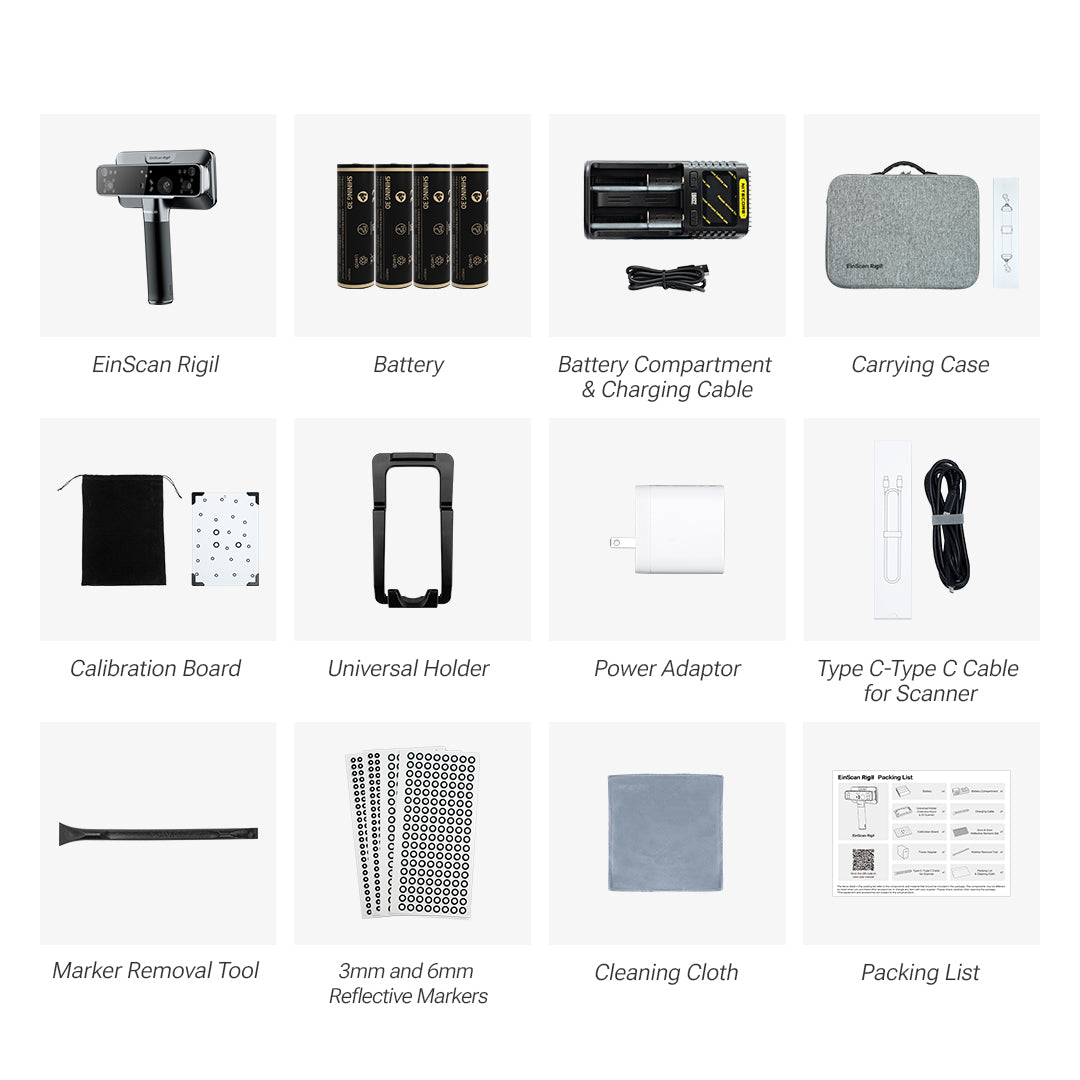

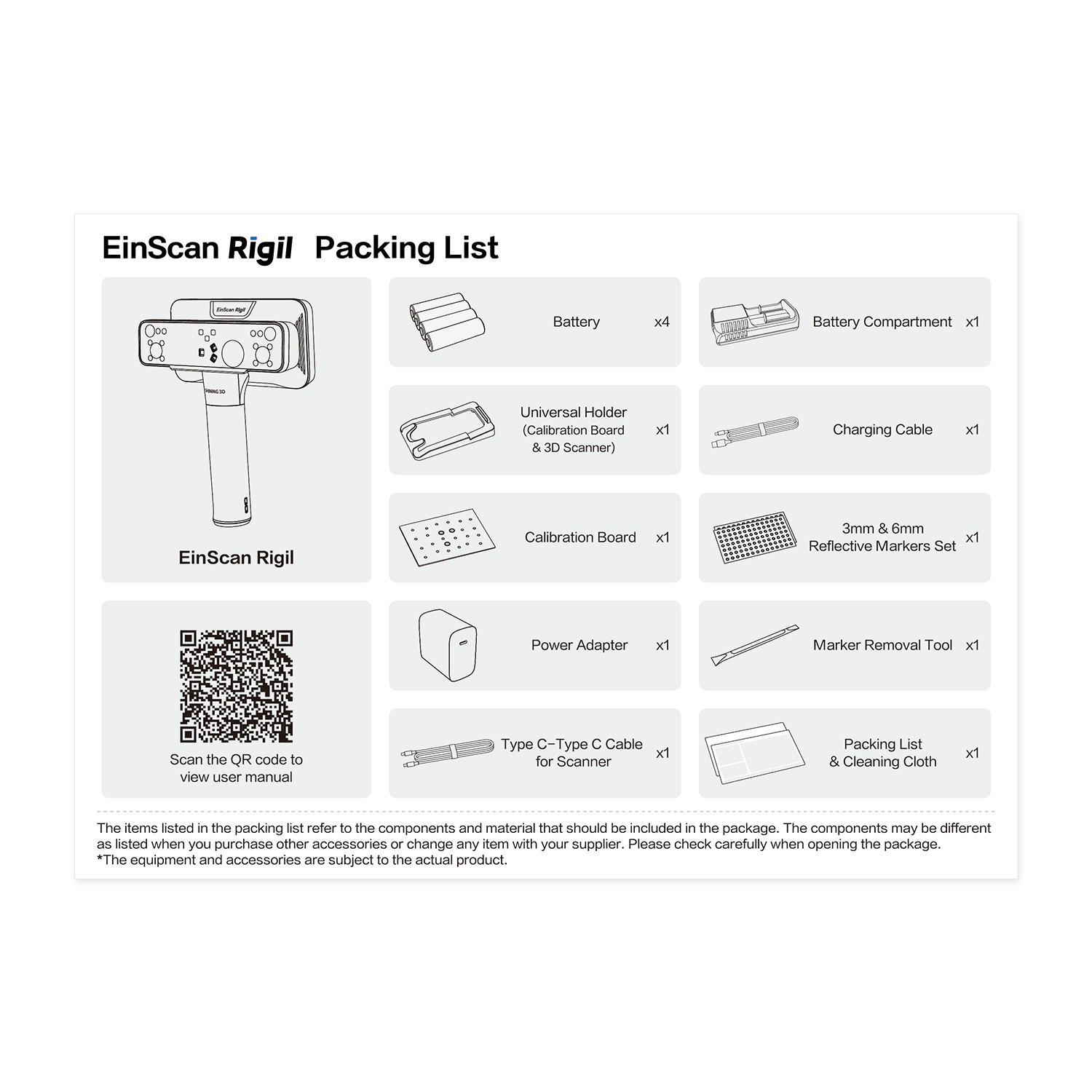

- What's In The Box
- FAQs
- Reviews

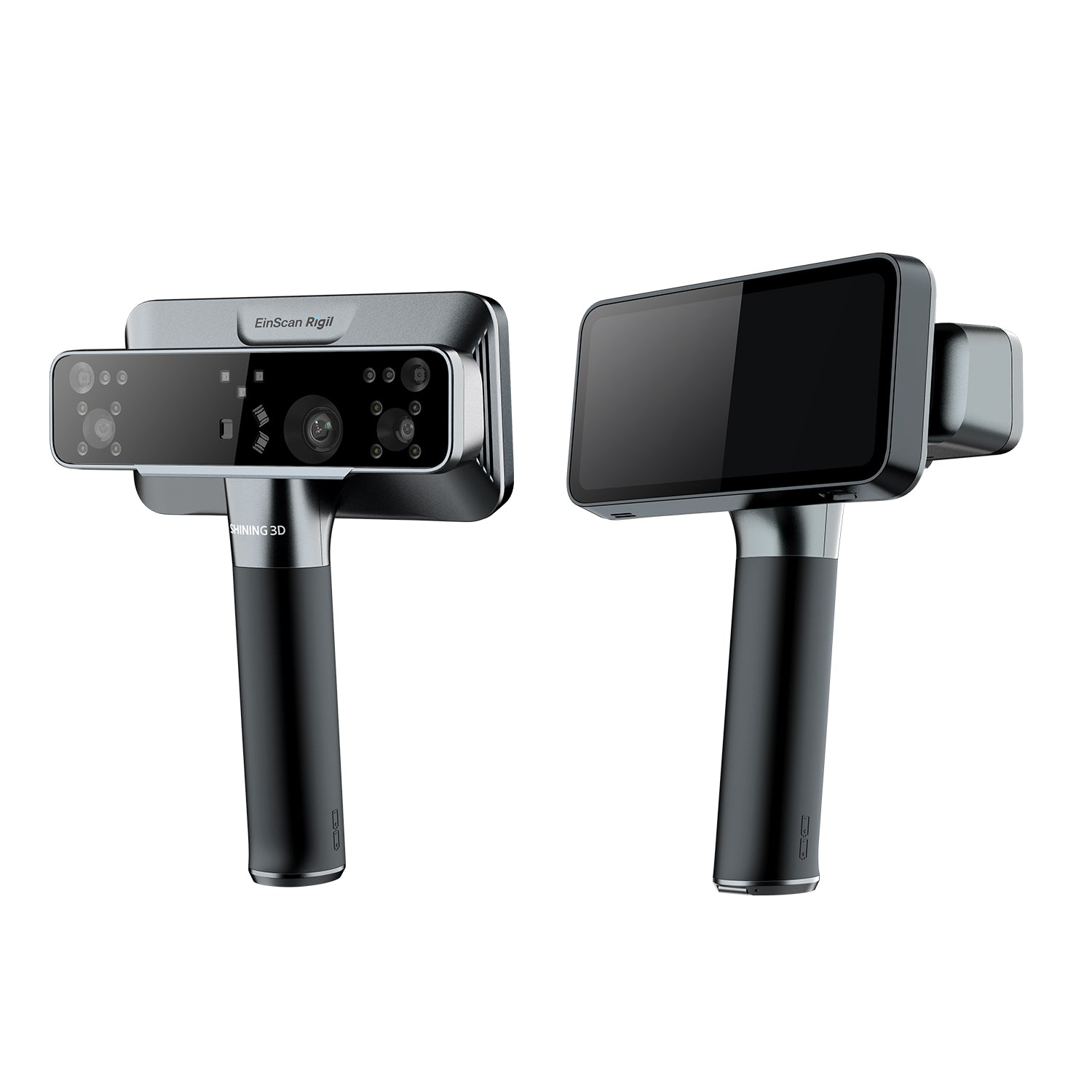

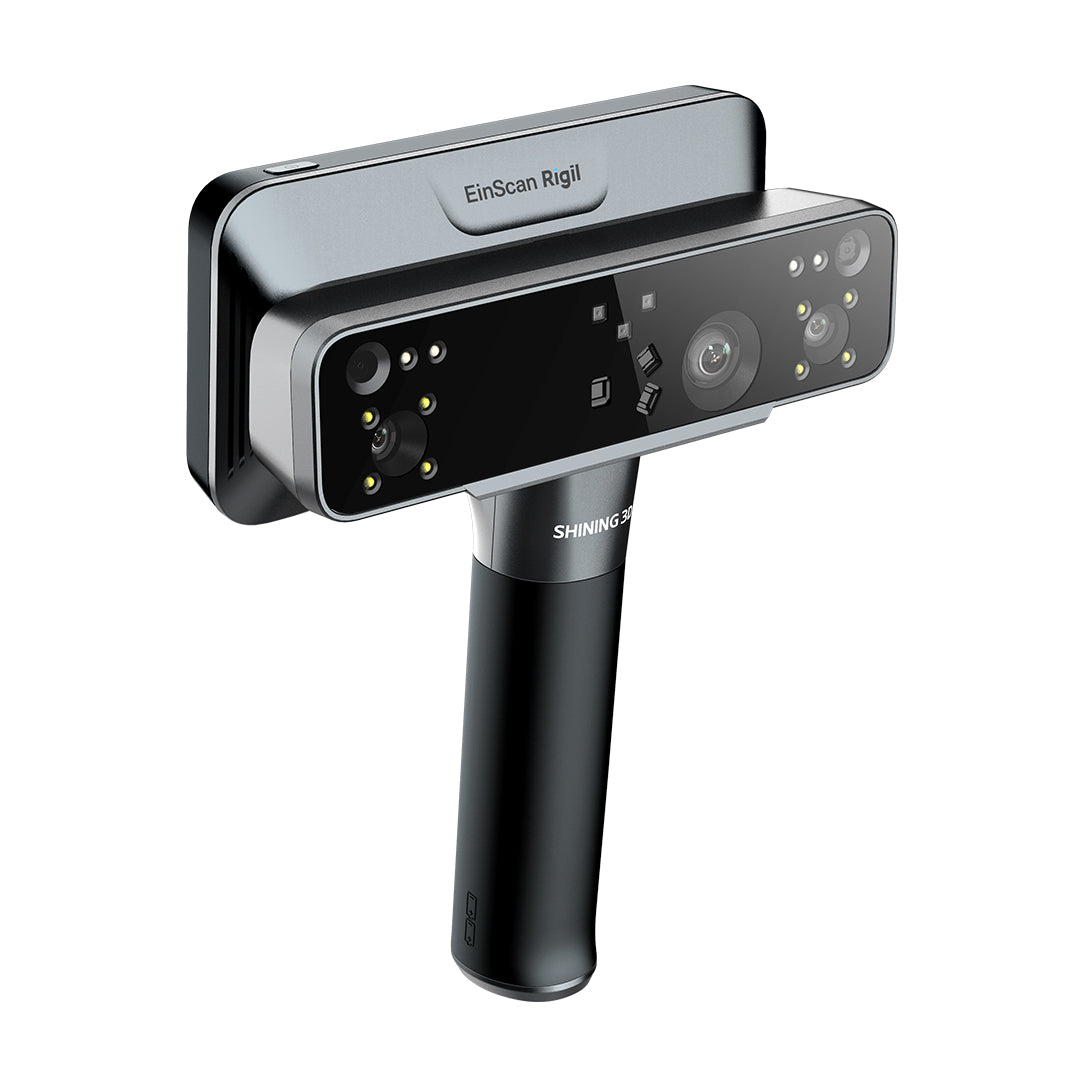

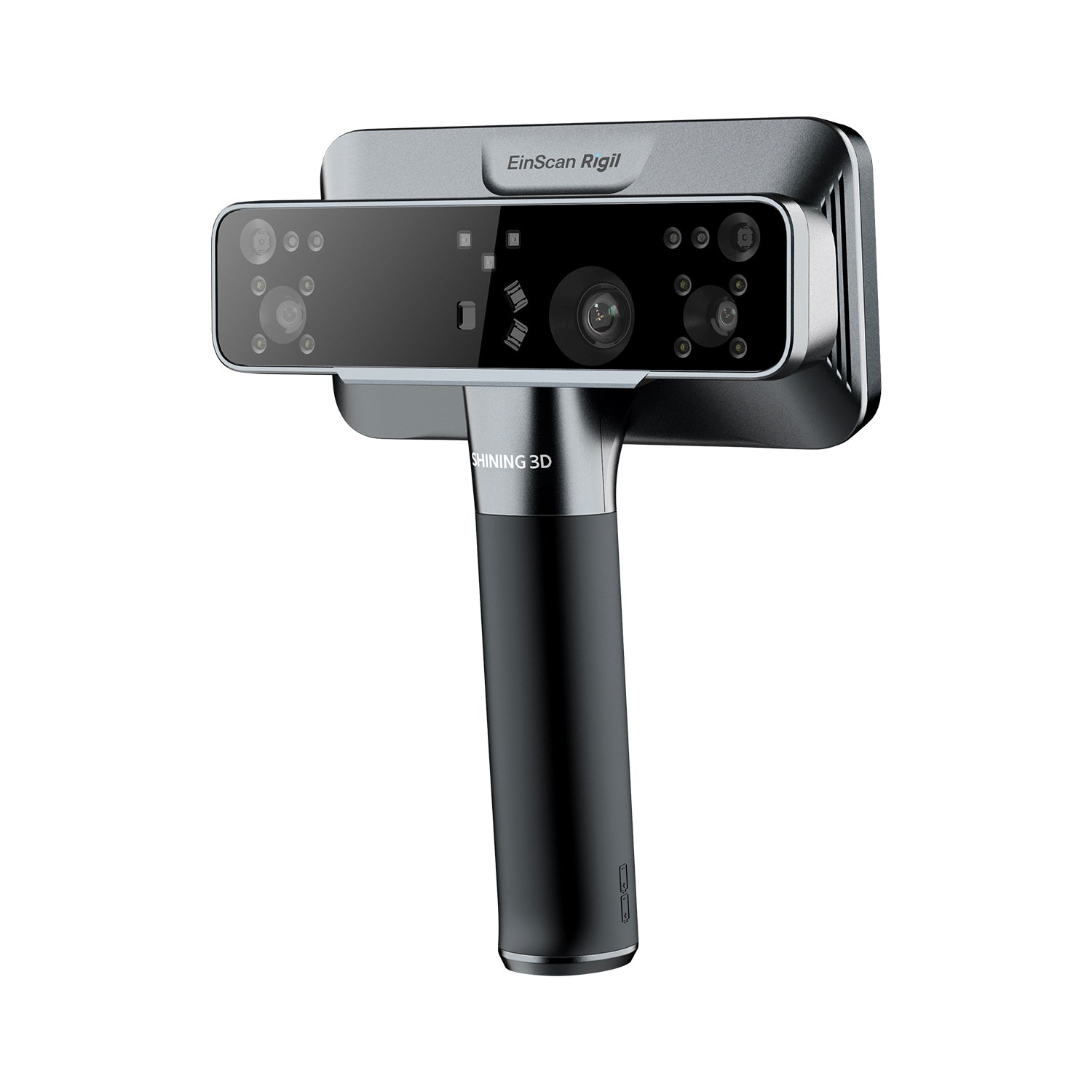

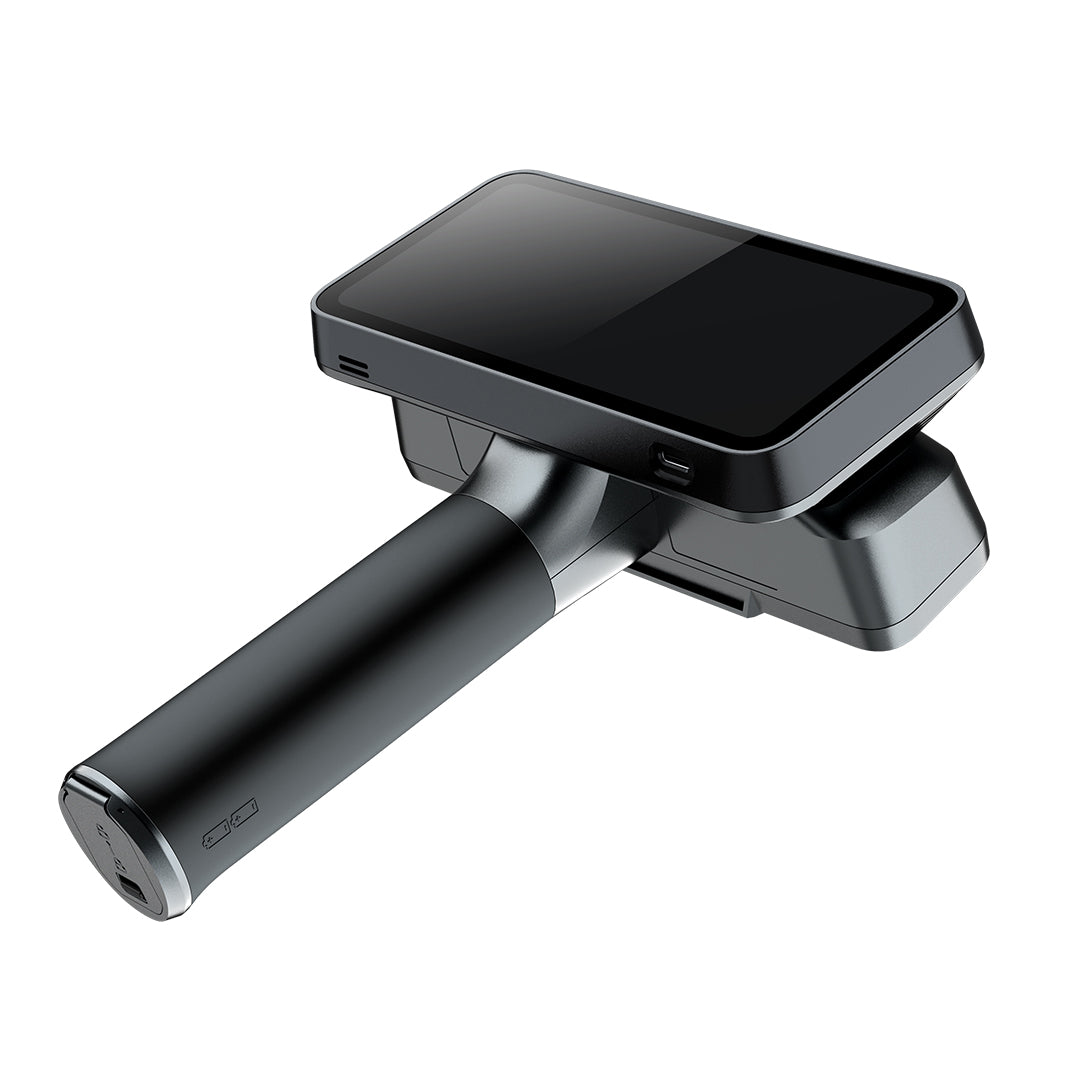

EinScan Rigil | The Tri-Mode Laser 3D scanner
Taxes excluded. Shipping Policy. Free shipping.
Take a Closer Look
BlueStar Mapping
BlueStar Mapping is texture mapping software for 3D scanners. It uses smart, semi-automated workflows to accurately map multi-angle photos from smartphones or DSLRs onto 3D scans, creating high-precision, true-color textured models.
EXModel
EXModel is a powerful gateway that simplifies reverse engineering for CAD modeling, from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to transform a mesh into a professional-quality CAD solid model in just a few simple steps.
EinScan Rigil Specification
Wireless Standalone
For extra computing resource：PC- Wireless / PC-Wired
Laser HD
IR Rapid
19+19 crossed blue laser lines
7 blue laser parallel lines

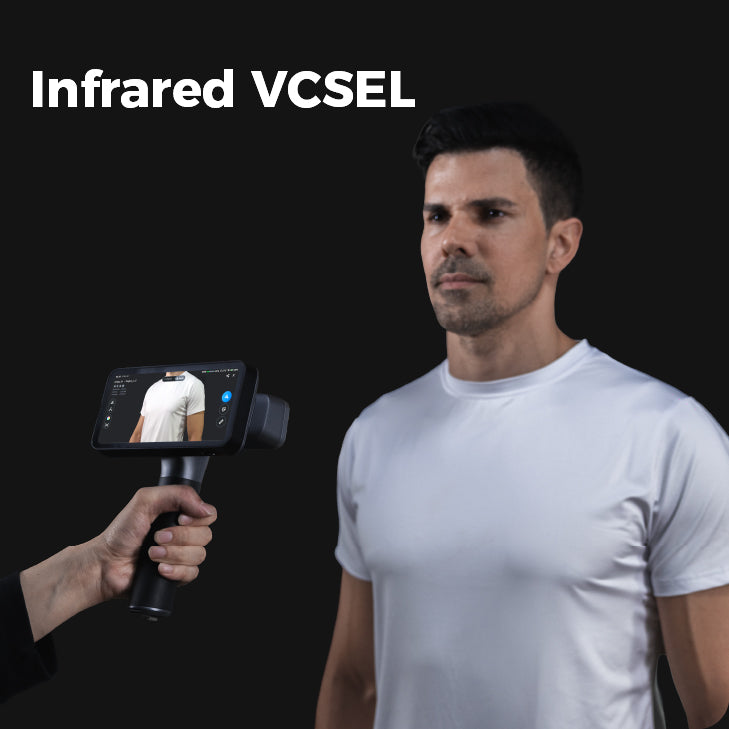

IR VCSEL

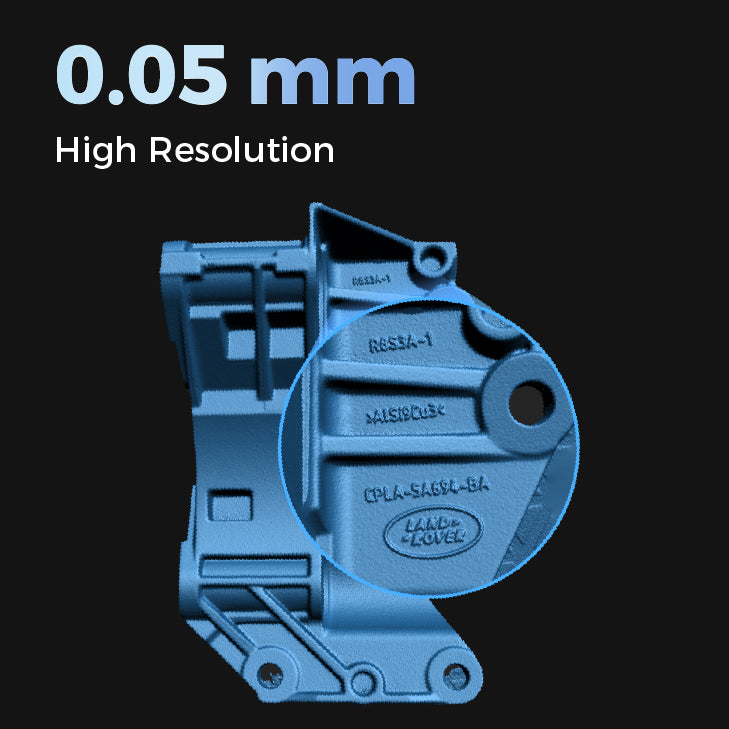

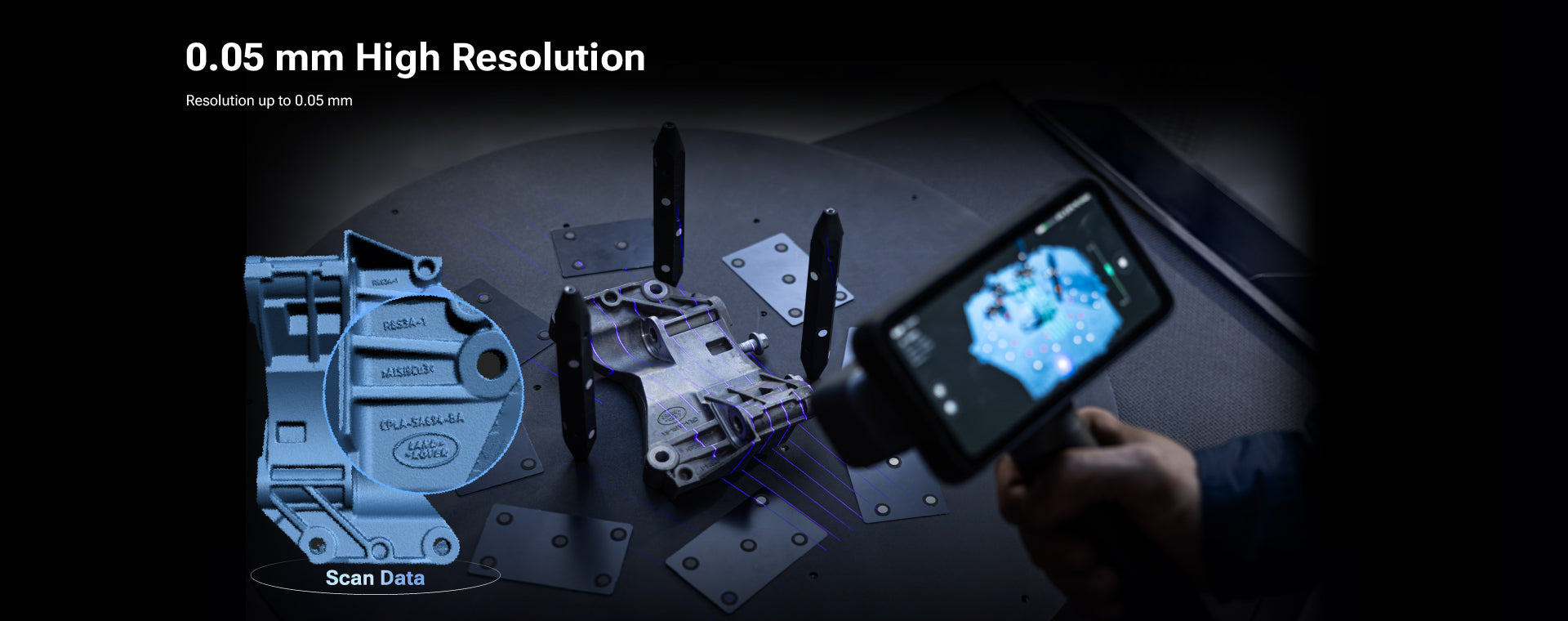

Laser HD：0.05 ~ 10 mm
IR Rapid：0.2 ~ 10 mm
19 crossed laser lines：4,400,000 points/s
7 blue laser parallel lines：940,000 points/s
IR Rapid：1,600,000 points/s
Laser HD：170 ~ 550 mm
IR Rapid：160 ~ 1500 mm

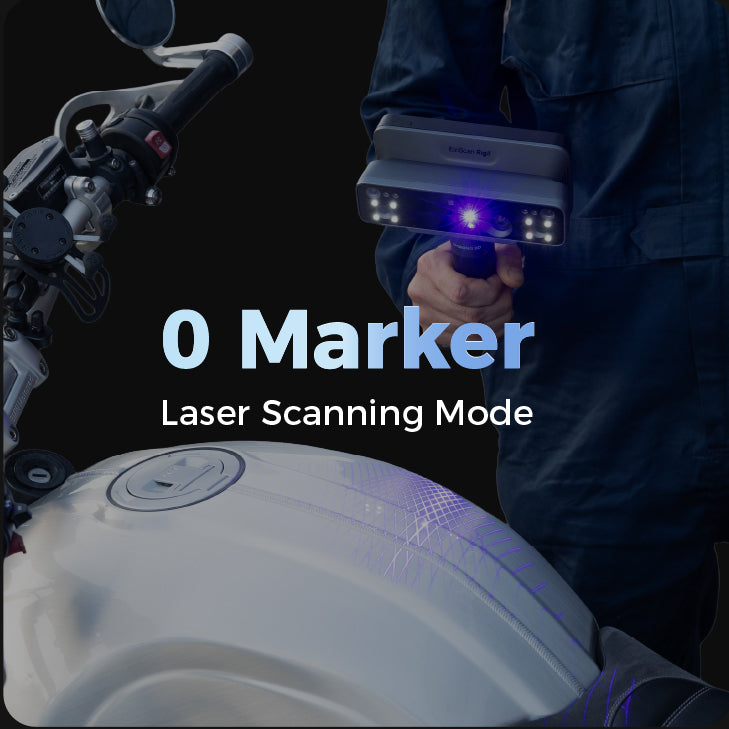

Laser HD：Global Markers / Markers / Features / Hybrid
IR Rapid：Global Markers / Markers / Features / Texture / Hybrid

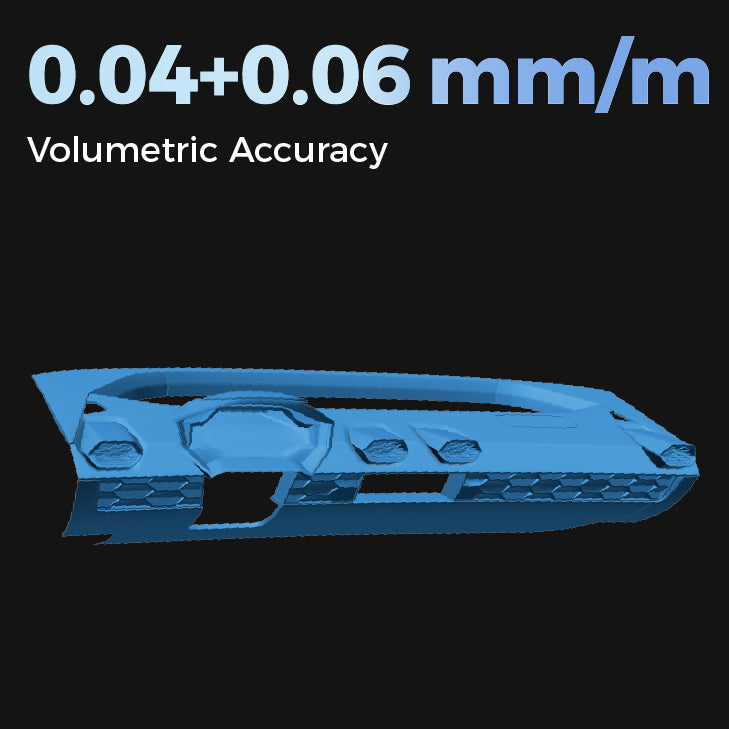

Laser HD：Up to 0.04 + 0.06 mm/ m
IR Rapid：Up to 0.1 + 0.4 mm/m
3D：2.3MP*2 1.3MP*2

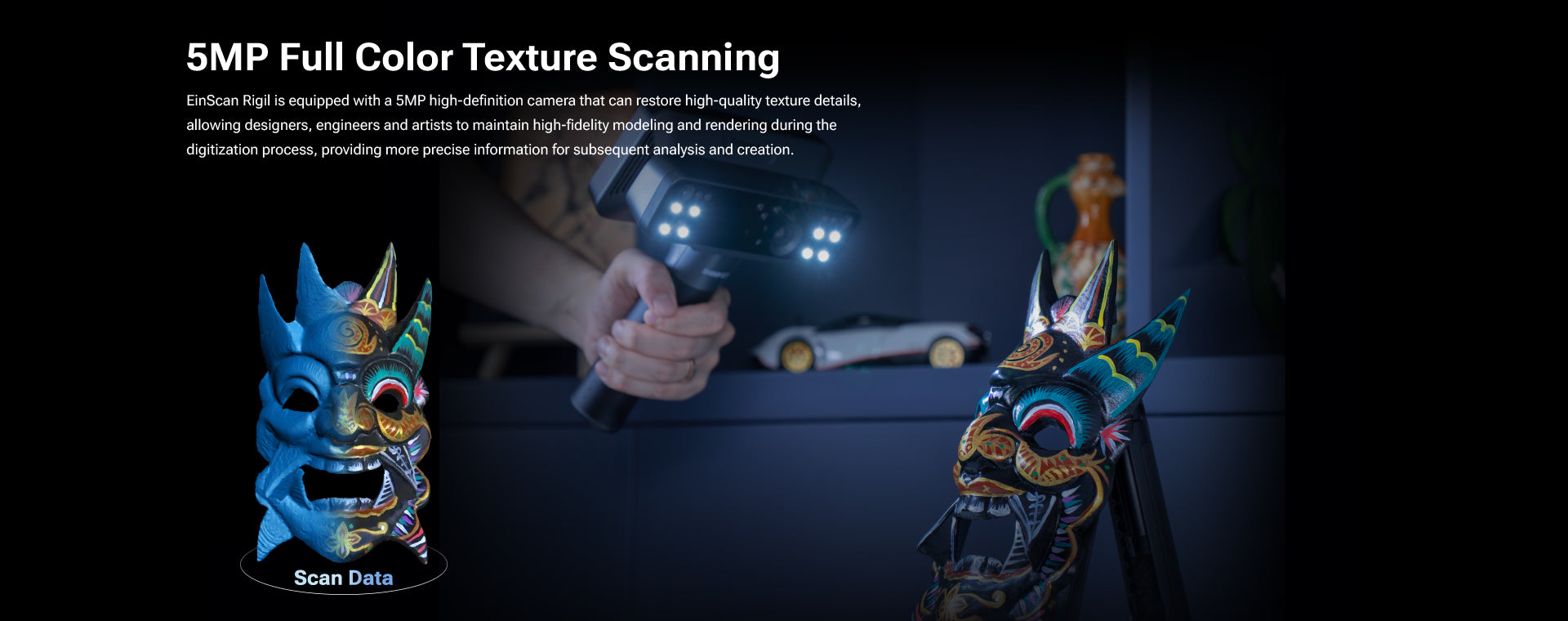

Texture：5MP
STL, OBJ, PLY, 3MF, ASC
Laser HD：Class II
IR Rapid：/

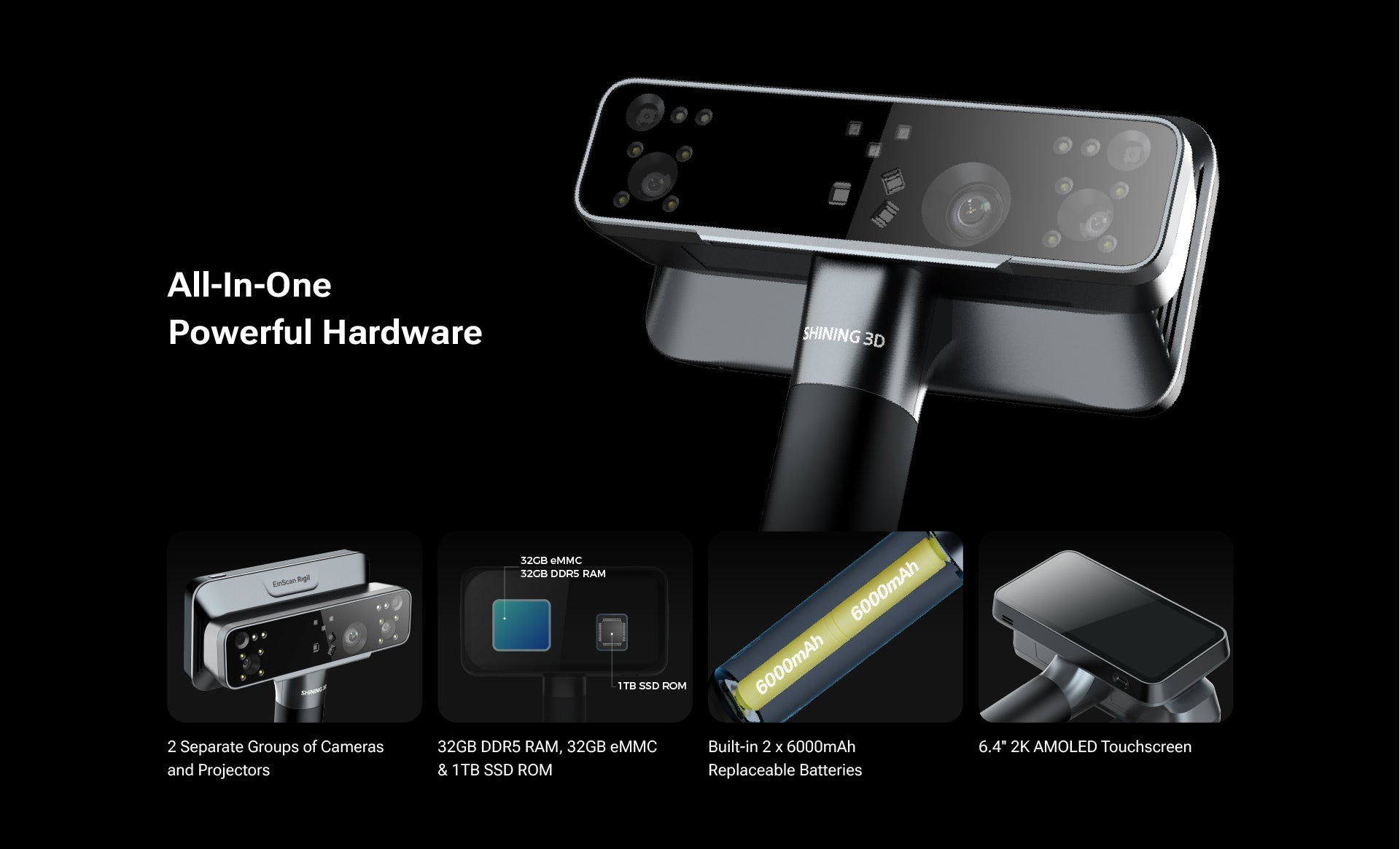

CPU：8 core, 2.4GHz
32GB eMMC+ 1TB SSD ROM
32GB DDR5 RAM
6.4”2K AMOLED Touch Screen
Temperature -10℃ ~ 40℃
CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Processor: 13th Gen Intel® Core™ i7-13700H or above;
Graphics Card:
NVIDIA GeForce RTX 3060 Laptop GPU or above
VRAM: 8 GB or above;
RAM: 64 GB or above, DDR5 dual-channel;
Interface: USB 3.0;
Operating System:
Windows 11 Professional 22H2
USB Type-C

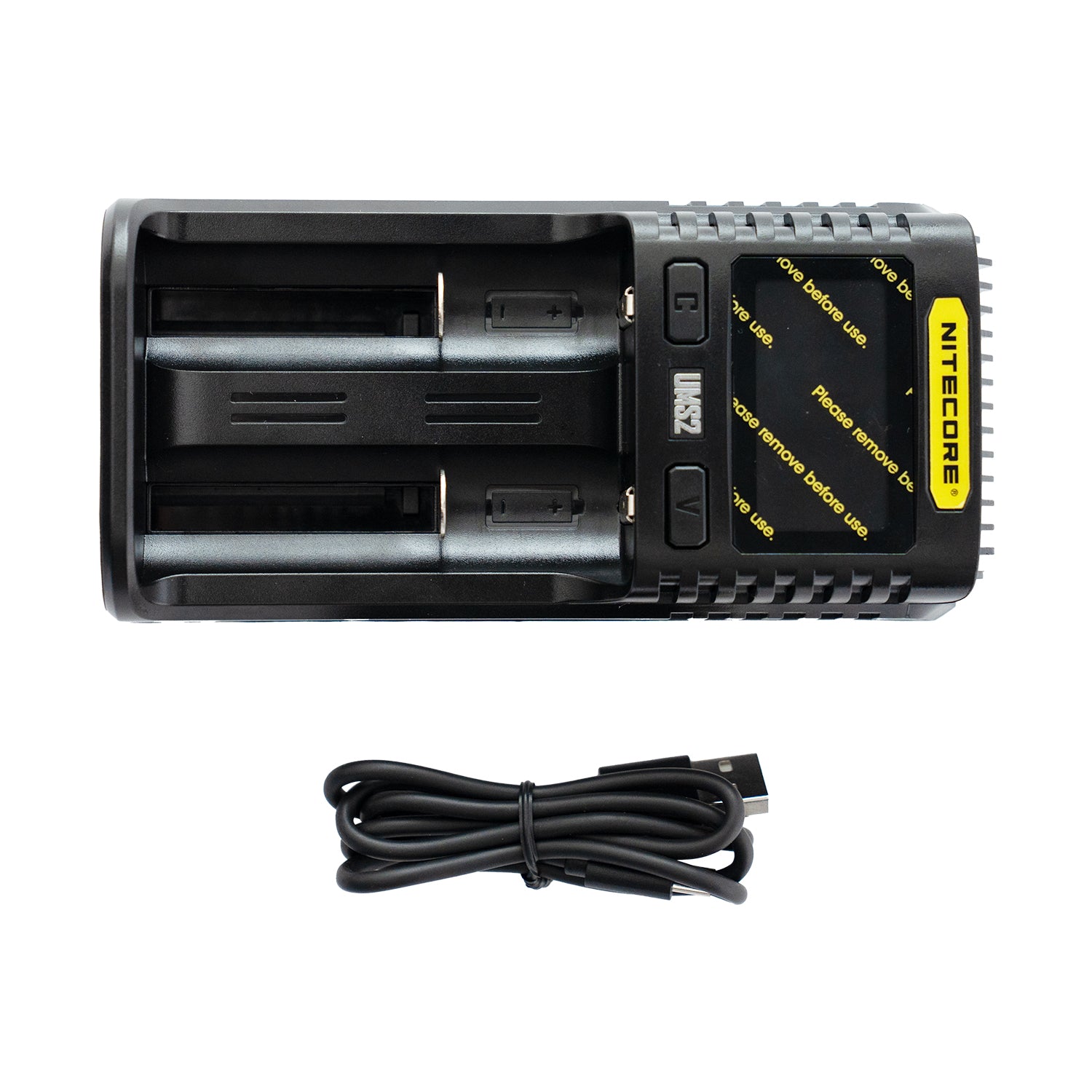

Battery： 6000mA*2

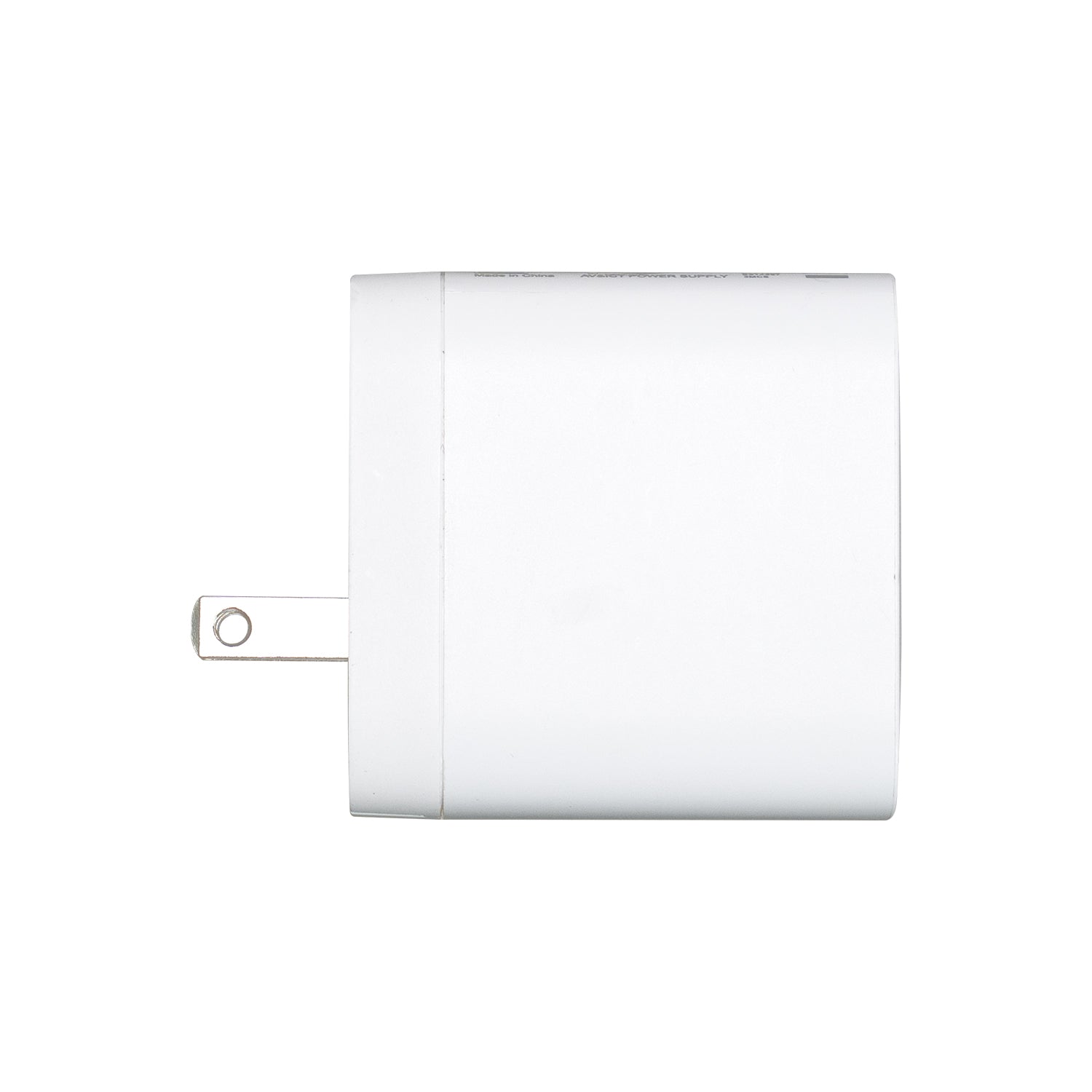

Support 60W-PD3.0 Charger
(H*D*W) 233 × 180 × 72.8 mm
870 g (batteries included)
FAQ
Why we choose EinScan Rigil?

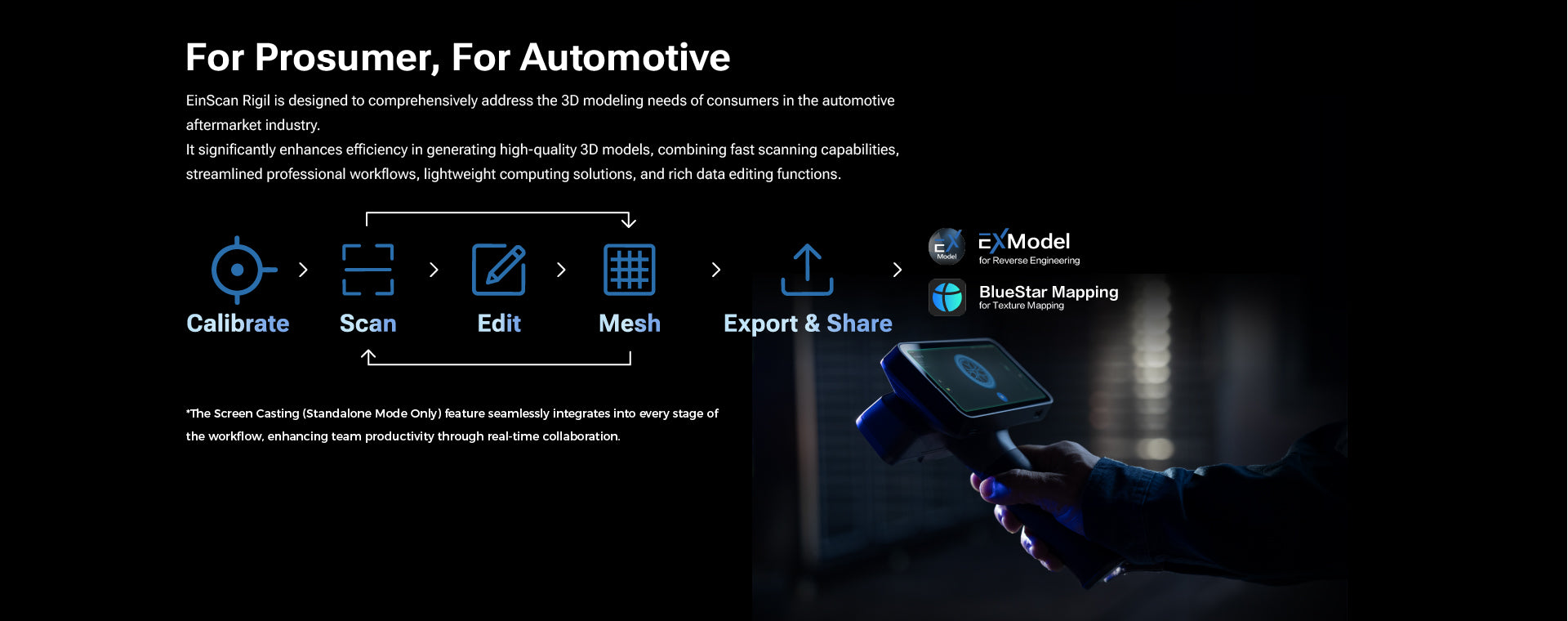

EinScan Rigil is designed to comprehensively address the 3D modeling needs prosumers in automotive aftermarket. It significantly enhances efficiency in generating high-quality 3D models, combining fast scanning capabilities, streamlined professional workflows, lightweight computing solutions, and rich data editing functions.
What are the three modes of this product means?

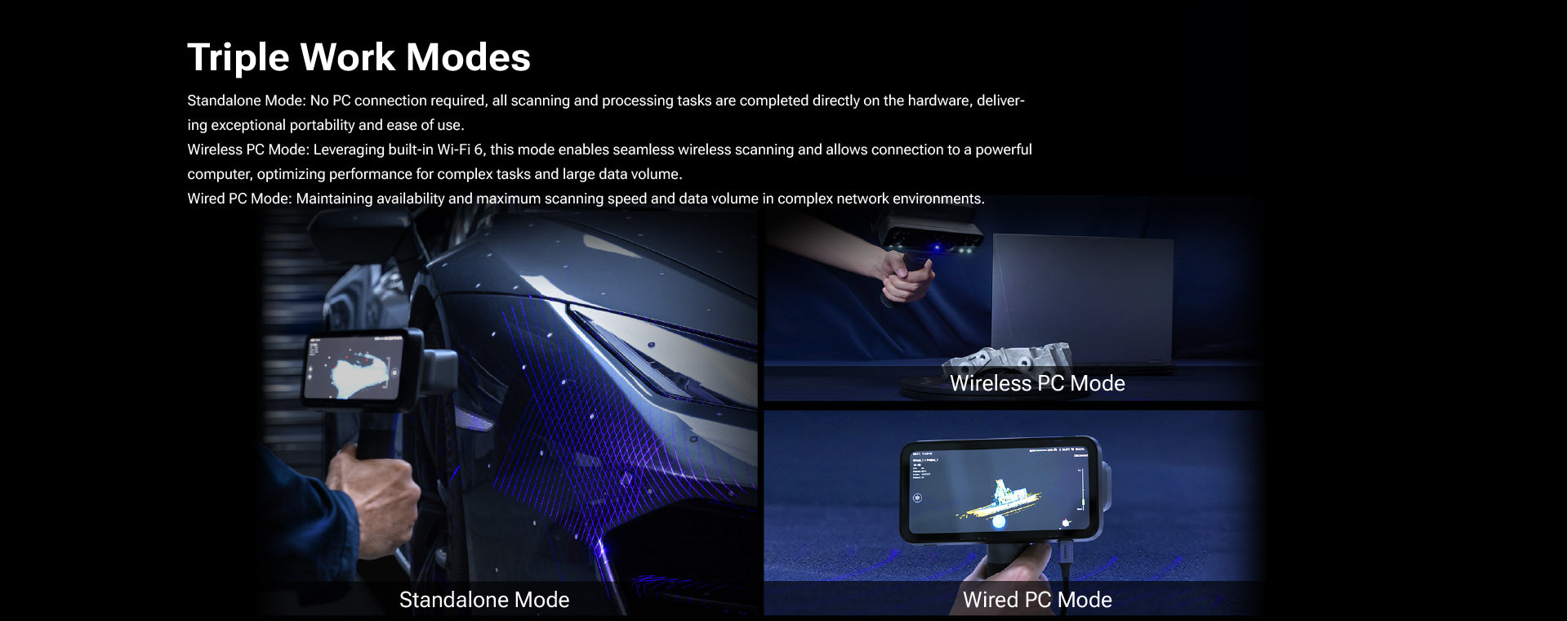

EinScan Rigil has three working modes:
- Standalone Mode-all scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use.

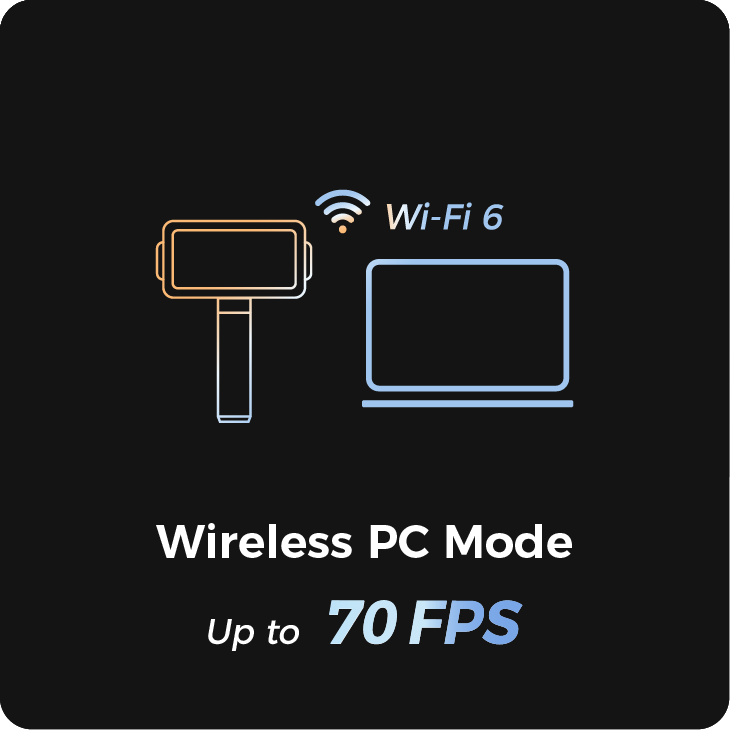

- Wireless PC Mode-Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a computer for maximum computing power, optimizing performance for complex tasks.
- Wired PC Mode-connect to PC with USB type-C cable, maintaining availability and maximum stability in complex network environments or under restricted network conditions.

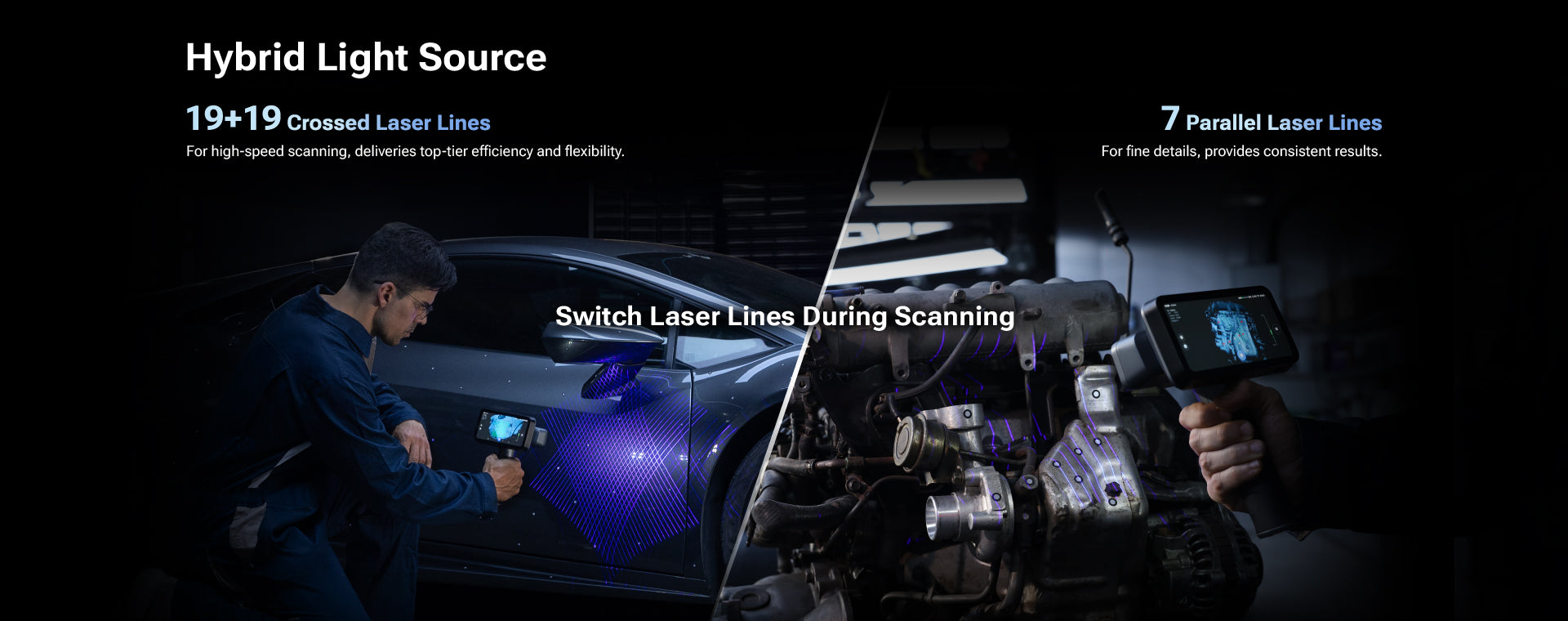

Can different laser lines be switched during the scanning process?

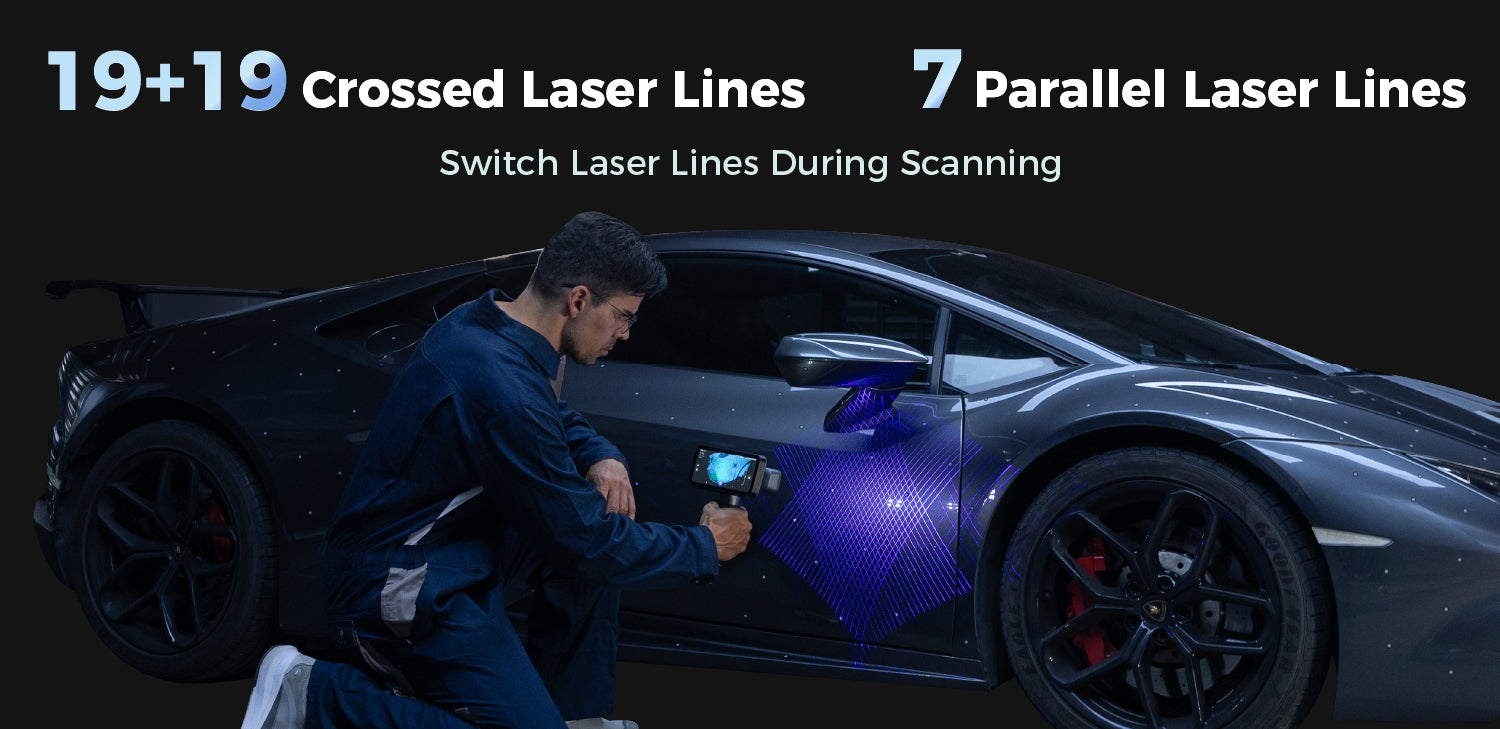

EinScan Rigil's 19+19 crossed laser lines and 7 parallel laser lines are switchable during scanning process, and data captured by each mode can be merged together, to achieve speed and detail in one scanning project
What is the device power supply method?

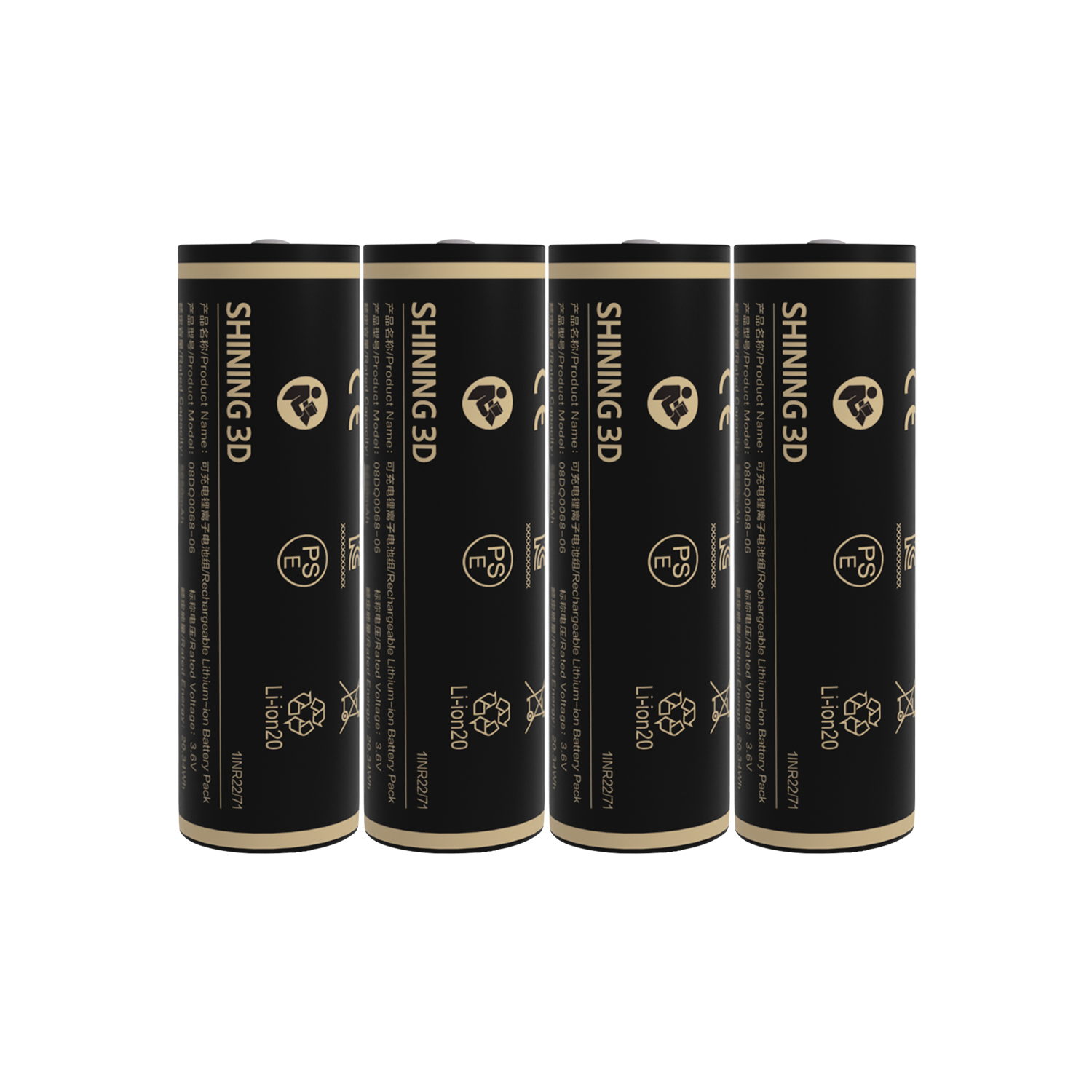

The device is powered by 2 x 6000mAh replaceable batteries, which can be quickly replaced (but currently does not support hot swapping). It also supports usb type-c power supply while charging and using simultaneously.
